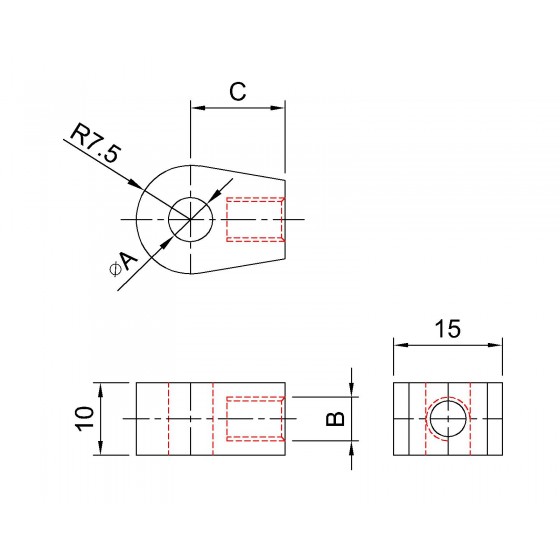

Unit:mm
Model No. | Hole Dia ( ∅A ) | Thread ( B ) |
Hole Center To End ( C ) | Material | Surface Treatment | Weight (g) |

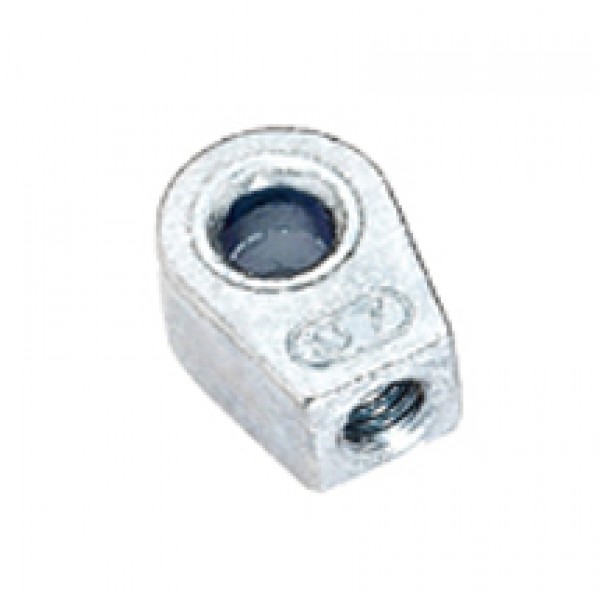

D7 | 6 | M6X1.0 | 13 | Zinc Alloy | White Zinc Plated | |
D7A | 8 | |||||
D7B | 10 |
