Unit:mm

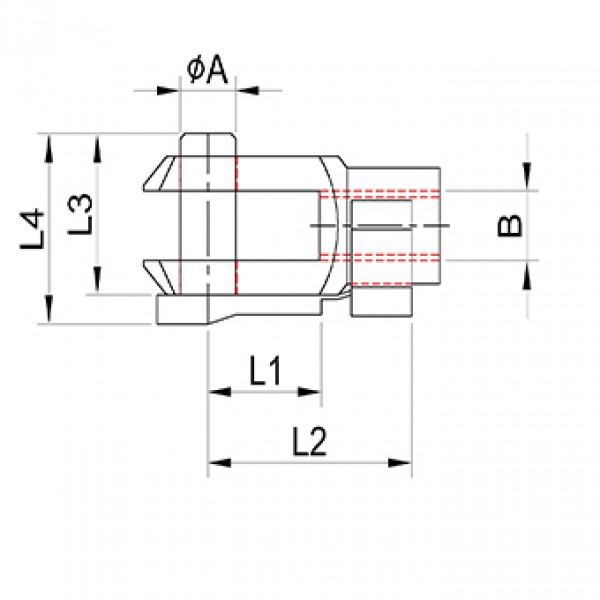

Model No. | ∅A | L1 | L2 | L3 | L4 | Therad ( B ) |
Material | Surface Treatment | Weight (g) |

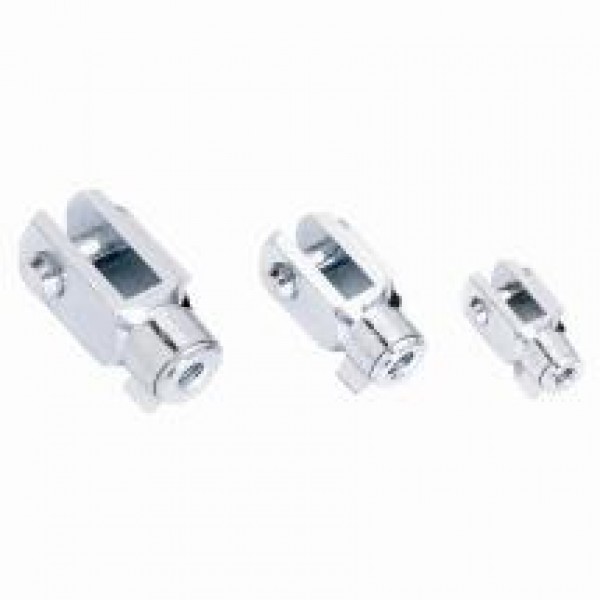

U5 FORK WITH LOCKING CLIP | 6 | 12 | 25 | 14 | 16.5 | M6X1.0 | 12L14 | White Zinc Plated | |
U6 FORK WITH LOCKING CLIP | 8 | 16 | 32 | 19 | 21.5 | M8X1.25 | |||
U7 FORK WITH LOCKING CLIP | 10 | 23 | 40 | 23 | 26 |
