Connecting Parts

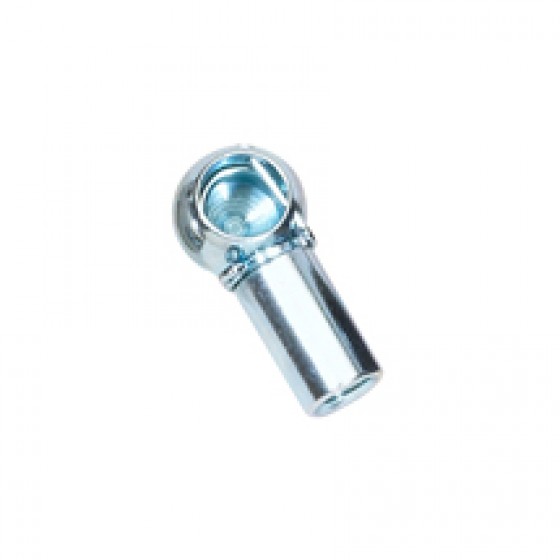

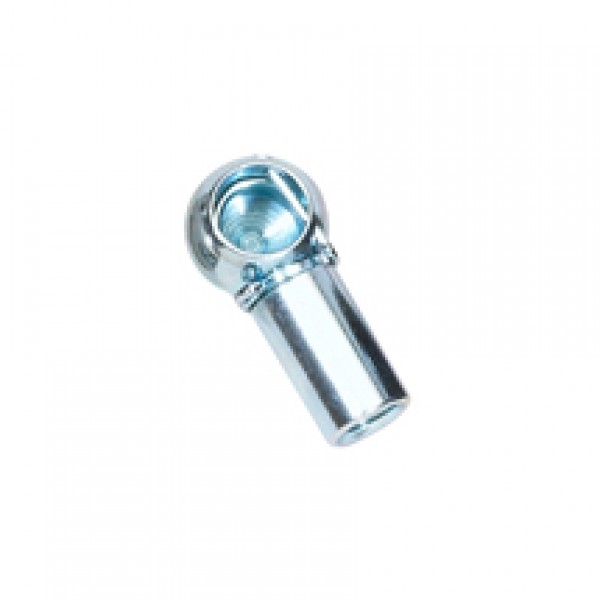

C13 SERIES (Hole Dia. 8mm)
Product details

 Unit:mm

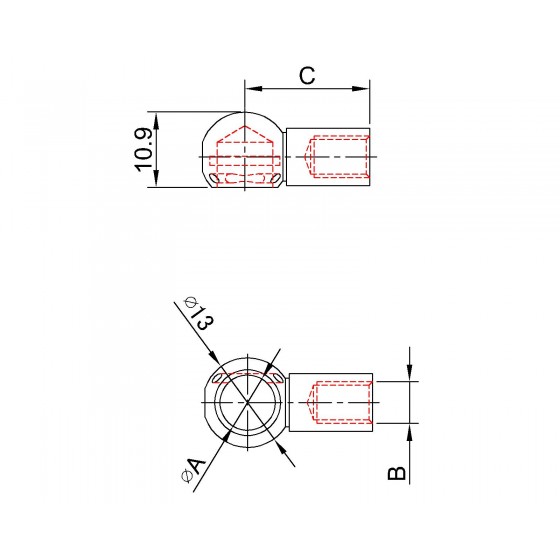

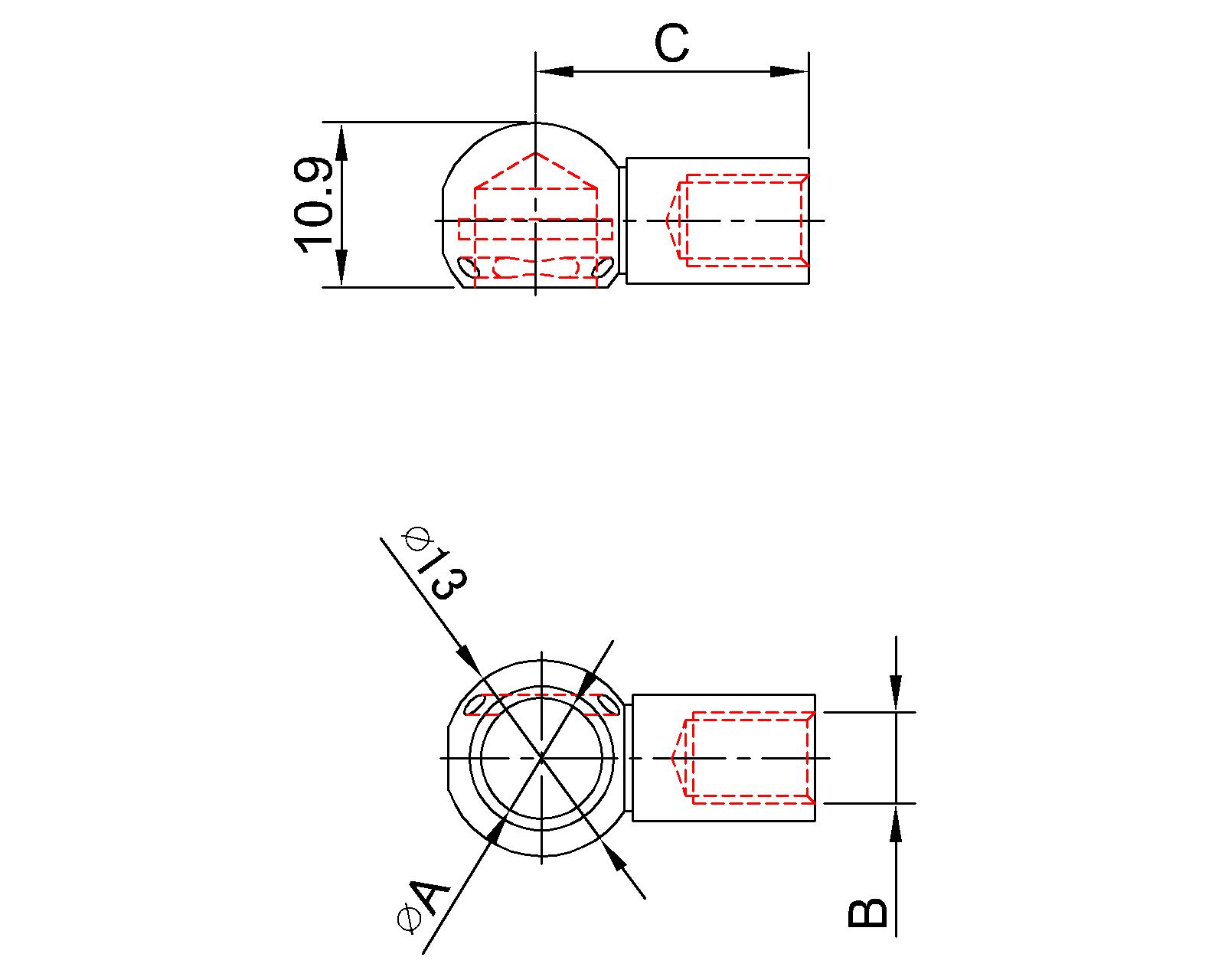

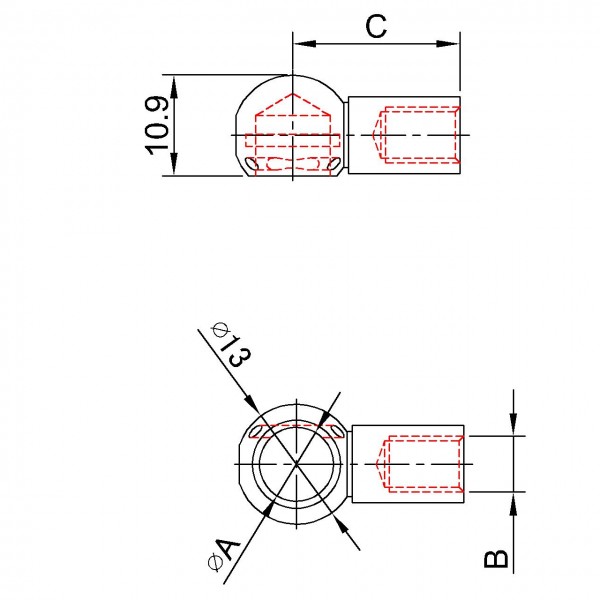

Model No. Hole Dia        ( ∅A ) Thread
( B )
Hole Center To End         ( C ) Material Surface Treatment Weight (g)
C1315M4 ZINC 8 M4X0.7 15 12L14 White Zinc Plated
C1318M4 ZINC 18
C1320M4 ZINC 20
C13S15M4 SUS303 15 SUS303 Vibratory Grinding
C13S18M4 SUS303 18
C13S20M4 SUS303 20
C1315M5 ZINC M5X0.8 15 12L14 White Zinc Plated
C1318M5 ZINC 18
C1320M5 ZINC 20
C13S15M5 SUS303 15 SUS303 Vibratory Grinding
C13S18M5 SUS303 18
C13S20M5 SUS303 20
C1315M6 ZINC M6X1.0 15 12L14 White Zinc Plated
C1318M6 ZINC 18
C1320M6 ZINC 20
C13S15M6 SUS303 15 SUS303 Vibratory Grinding
C13S18M6 SUS303 18
C13S20M6 SUS303 20
