Connecting Parts

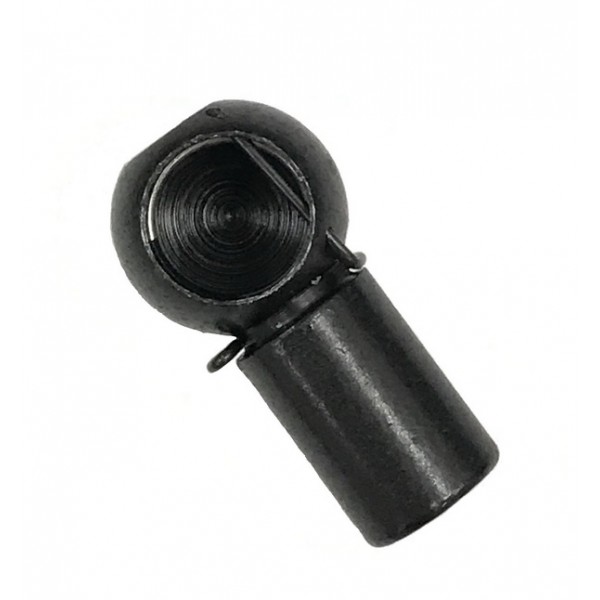

C24 STEEL (Hole Dia. 16mm)

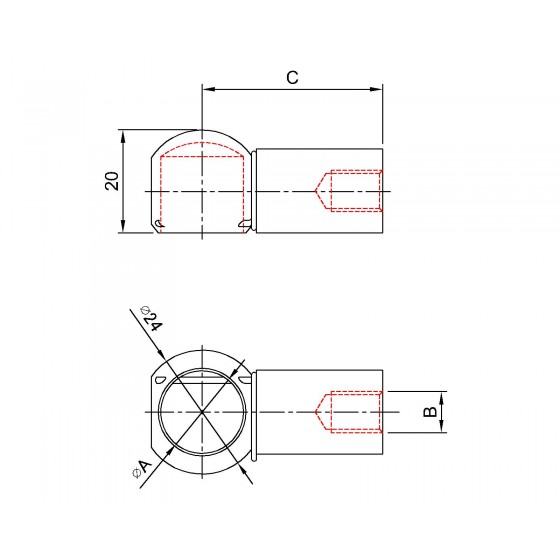

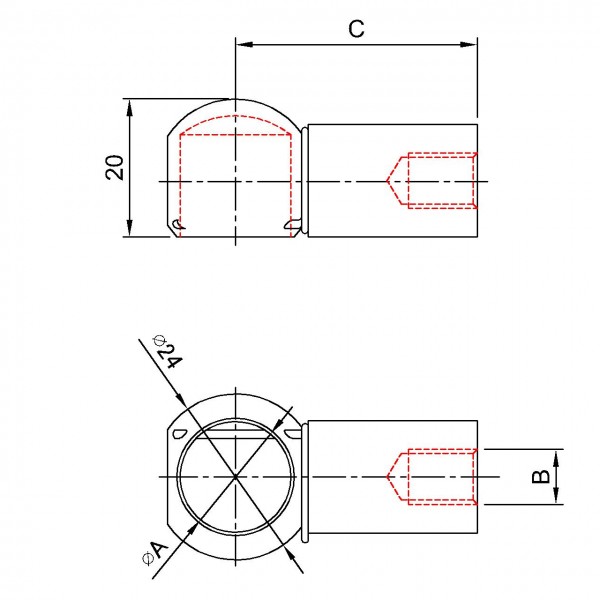

Product details

Unit:mm

Model No. Hole Dia        ( ∅A ) Thread
( B )
Hole Center To End         ( C ) Material Surface Treatment Weight (g)
C2425M8   BLACK ZINC 16 M8X1.25 25 1015 BLACK ZINC Plated
C2430M8   BLACK ZINC 30
C2435M8   BLACK ZINC 35
C2430M10 BLACK ZINC M10X1.5 30
C2435M10 BLACK ZINC 35
