Connecting Parts

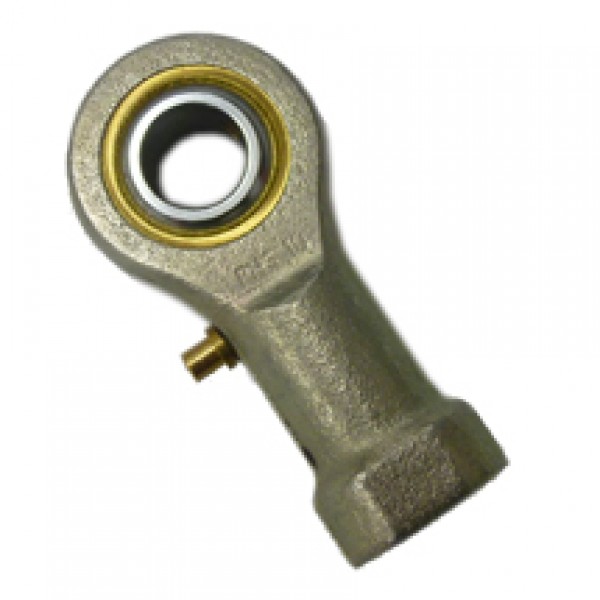

PILLOBALL Rod Ends
Product details

Unit:mm

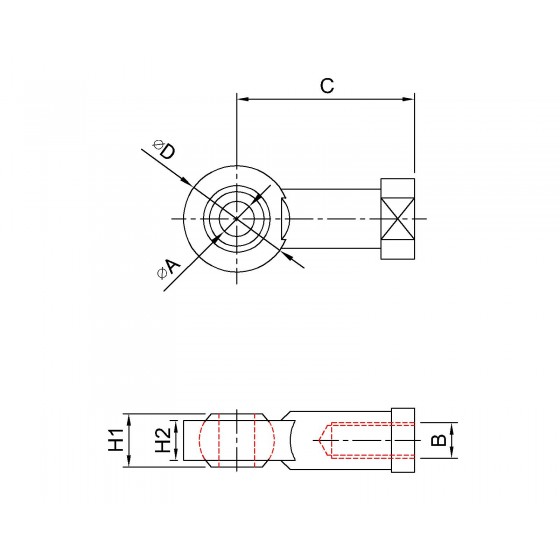

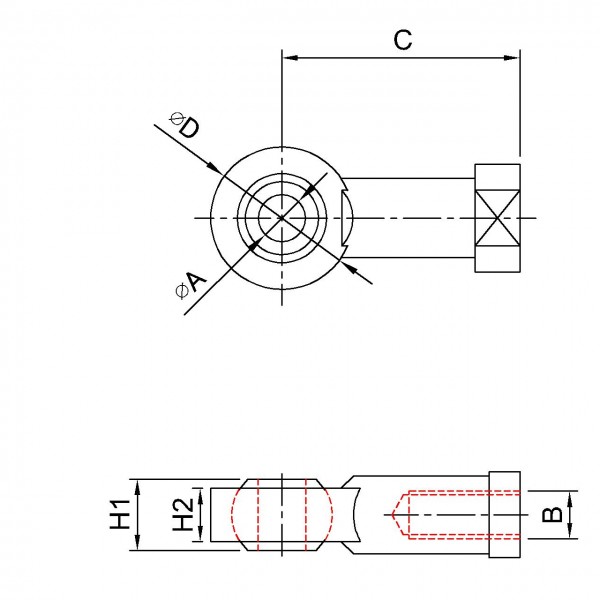

Model No. Hole Dia        ( ∅A ) ∅D H1 H2 C Thread
 ( B )
Material Weight (g)
PHS 6EC 6 18 9 6.7 30 M6X1.0 Zinc Alloy
PHS 8EC 8 22 12 9 36 M8X1.25
PHS 10EC 10 26 14 10.5 43 M10X1.5
PHS14-SI14-1T/K 14 37.8 19 13.5 57 M14X1.5 Zinc Alloy
