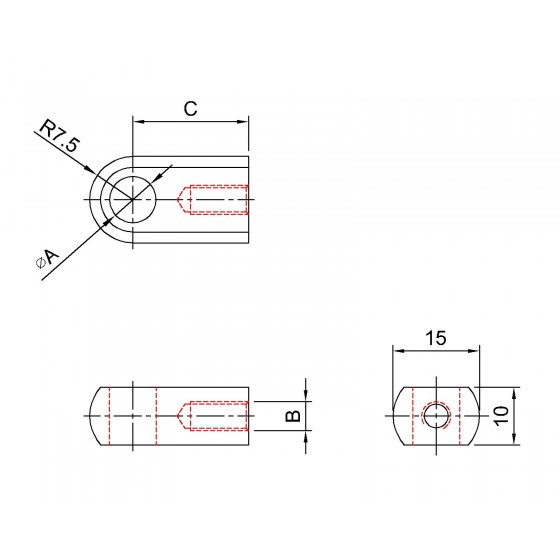

Unit:mm
| Model No. | Hole Dia ( ∅A ) | Thread ( B ) |
Hole Center To End ( C ) | Material | Surface Treatment | Weight (g) |
| L5M608 ZINC | 8 | M6X1.0 | 20 | 12L14 | White Zinc Plated | |
| L5M610 ZINC | 10 | |||||
| L5M808 ZINC | 8 | M8X1.25 | ||||
| L5M810 ZINC | 10 | |||||
| L5SM608 SUS303 | 8 | M6X1.0 | SUS303 | Vibratory Grinding | ||
| L5SM610 SUS303 | 10 | |||||
| L5SM808 SUS303 | 8 | M8X1.25 | ||||
| L5SM810 SUS303 | 10 |
