Connecting Parts

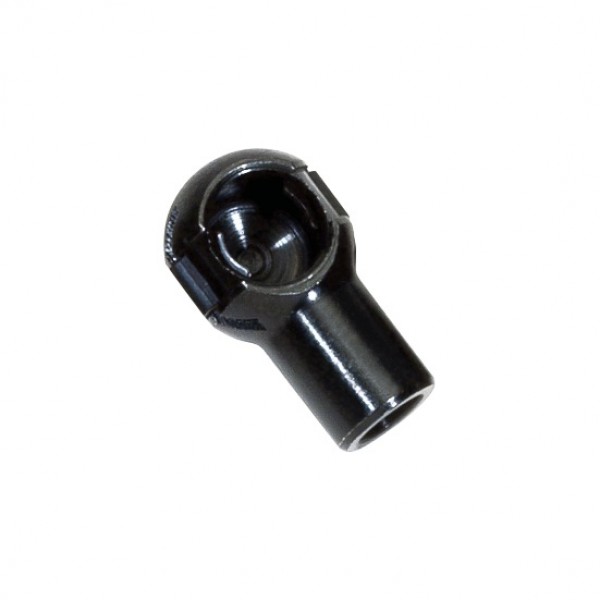

M9 STEEL (Hole Dia. 10mm)
Product details

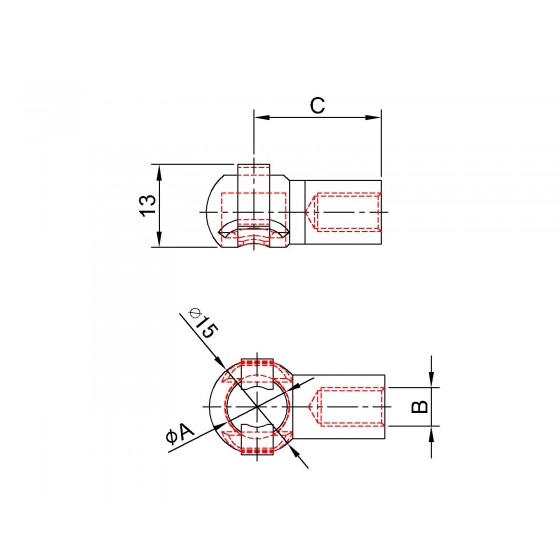

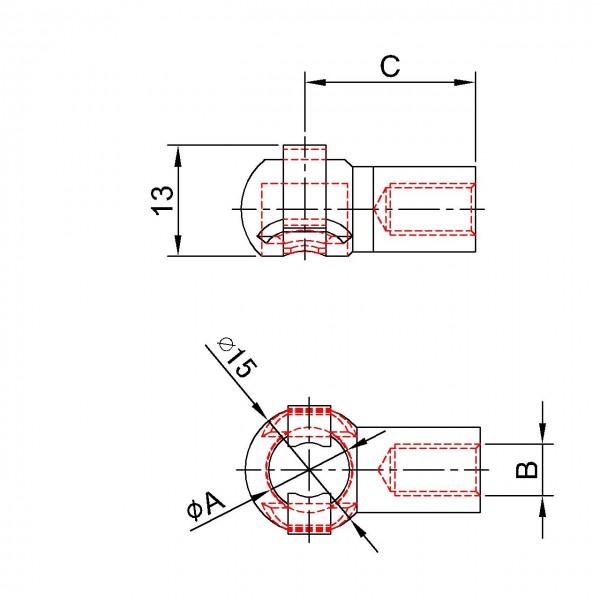

Unit:mm

Model No. Hole Dia        ( ∅A ) Thread
 ( B )
Hole Center To End         ( C ) Material Surface Treatment Weight (g)
M920M6 BLACK ZINC 10 M6X1.0 20 12L14 Black Zinc
M925M6 BLACK ZINC 25
M930M6 BLACK ZINC 30
M920M8 BLACK ZINC M8X1.25 20
M925M8 BLACK ZINC 25
M930M8 BLACK ZINC 30
