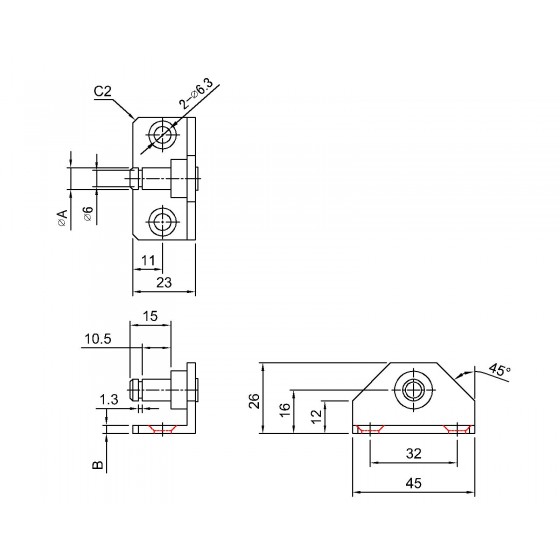

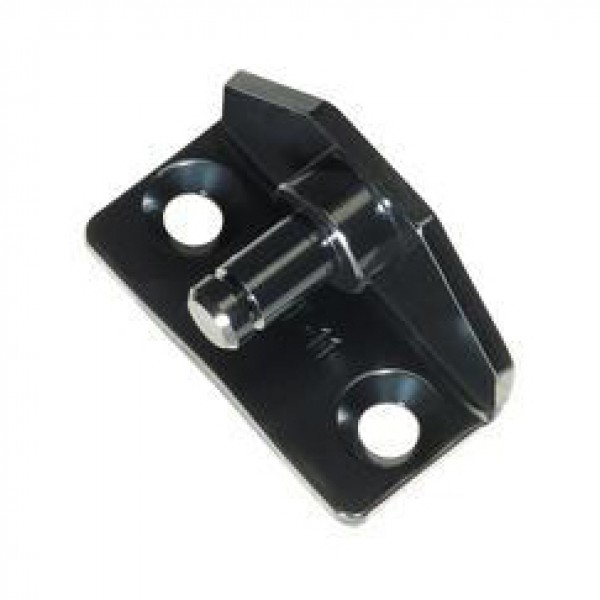

BKT-11(Bolt 8mm) (Thickness 3mm)
BKT-11(Bolt 8mm) (Thickness 3mm)
Continue to buy
Inquiry immediately
Product Details
Unit:mm
Model No.
Bolt or Ball
( ∅A )
Thickness
( B )
Bolt or Ball Material
Plate Material
Surface Treatment
Remark
BKT-11 ZINC
8
3
12L14 OR 12L15
P-O
White Zinc Plated

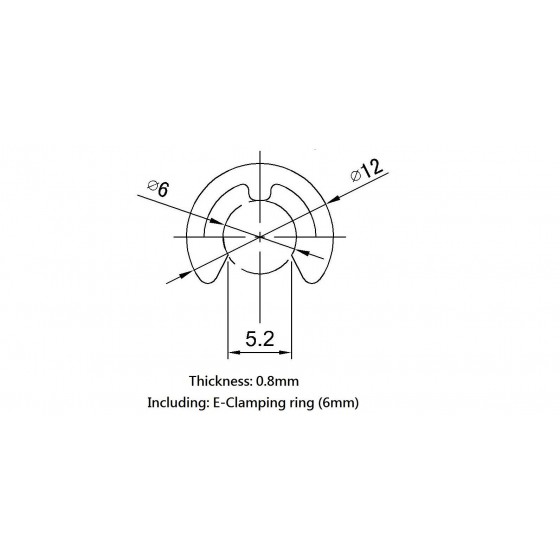

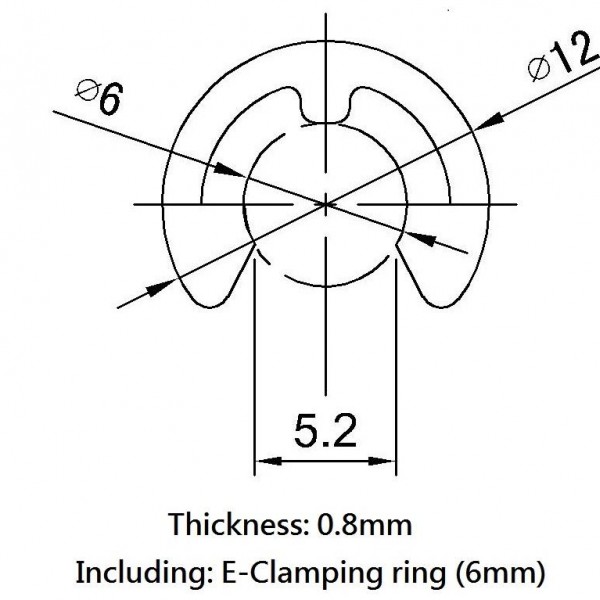

E-ring(6mm)
BKT-11 BLACK COATED
12L14 OR 12L15
P-O
Black Coated
BKTS-11 SUS304
SUS303
SUS304
Vibratory Grinding
BKT-116 BLACK COATED
6
12L14 OR 12L15
P-O
Black Coated

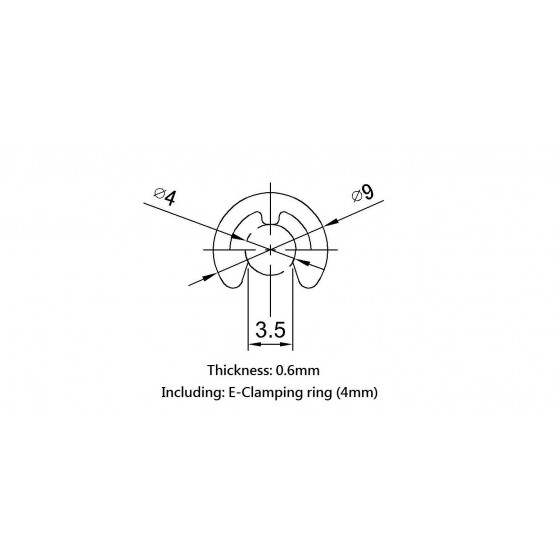

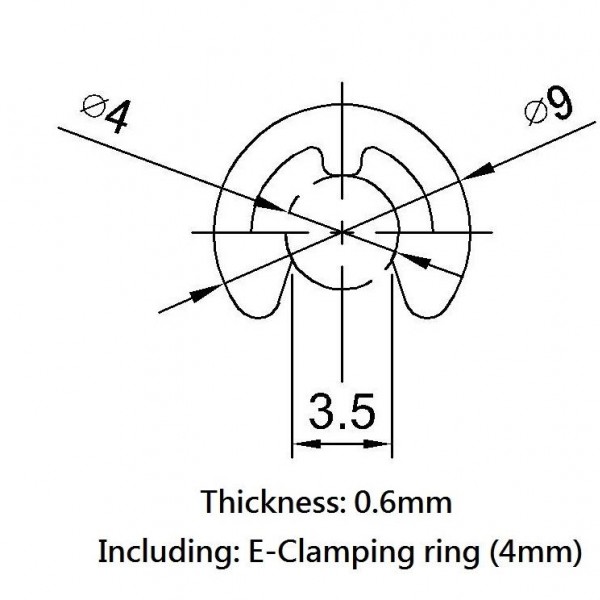

E-ring(4mm)
