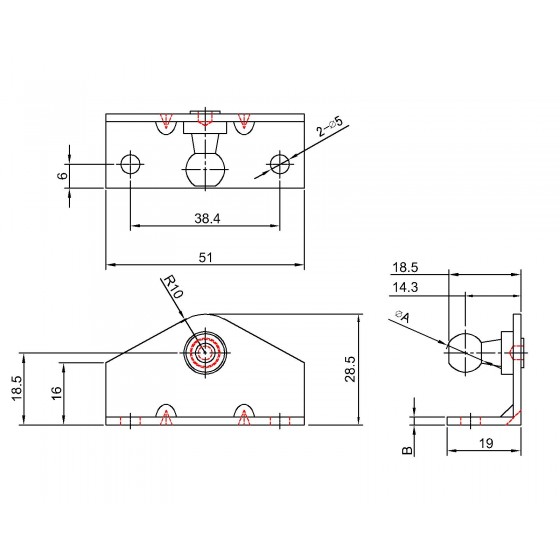

Unit:mm
Model No. | Bolt or Ball ( ∅A ) |
Thickness ( B ) |
Bolt or Ball Material | Plate Material | Surface Treatment | Weight (g) |
BKT-10-I ZINC | 10 | 2 | 12L14 | P-O | White Zinc Plated | |
BKT-10-I BLACK COATED | 12L14 | P-O | Black Coated | |||
BKTS-10-I SUS304 | SUS303 | SUS304 | Vibratory Grinding |
