Brackets

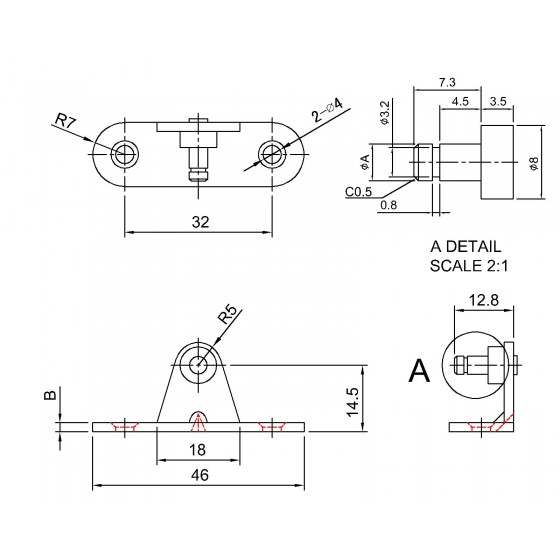

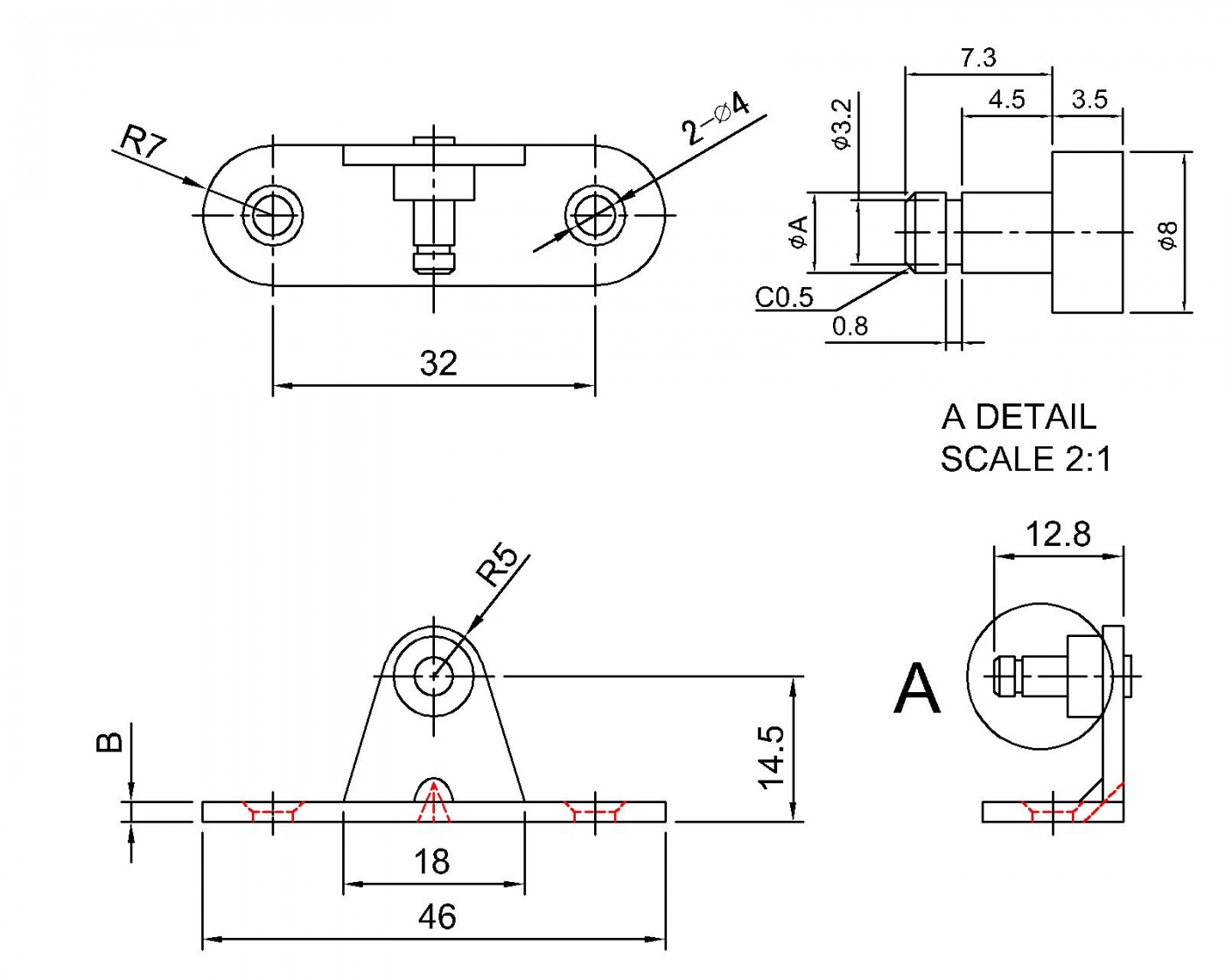

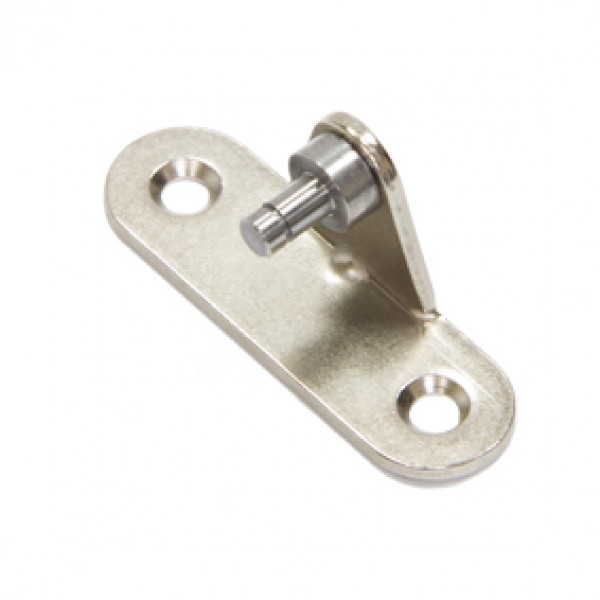

BKT-06D(Bolt 4mm)    (Thickness 2mm)
Product details


Unit:mm

Model No. Bolt or Ball
( ∅A )
Thickness
 ( B )
Bolt or Ball Material  Plate Material Surface Treatment Weight (g)
BKT-06D NICKEL 4 2 12L14  P-O Nickel Plated
BKTS-06D SUS304 SUS303 SUS304 Vibratory Grinding
