Brackets

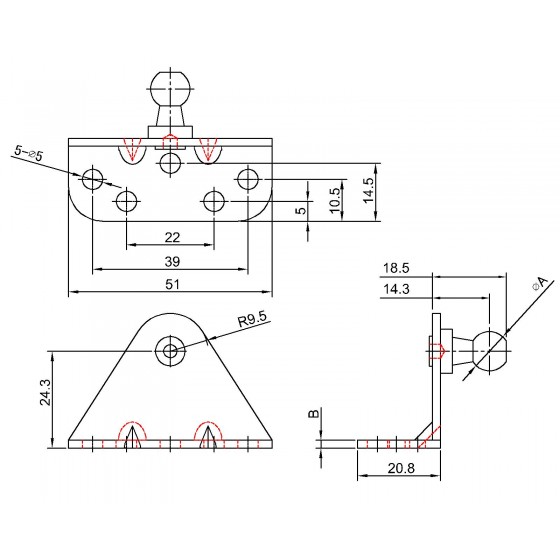

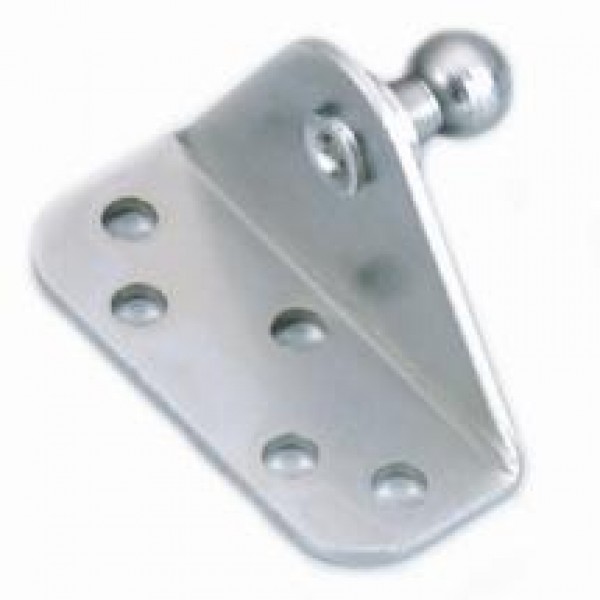

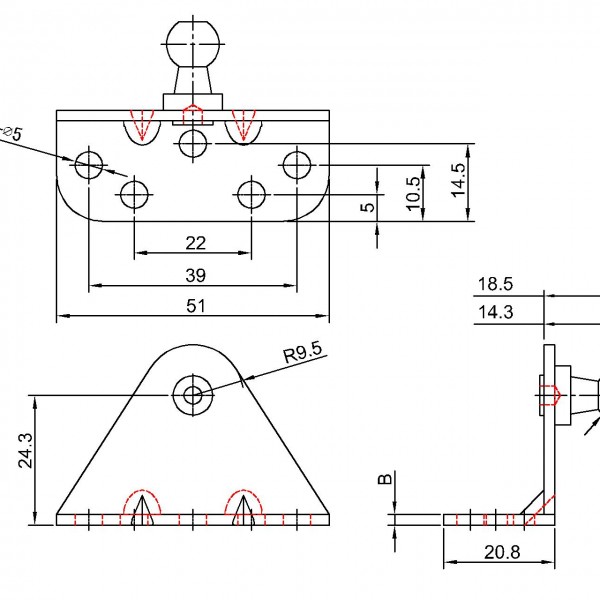

BKT-03 (Ball 10mm)    (Thickness 2mm)
Product details

Unit:mm

Model No. Bolt or Ball
( ∅A )
Thickness
 ( B )
Bolt or Ball Material  Plate Material Surface Treatment Weight (g)
BKT-03 ZINC 10 2.5 12L14 P-O White Zinc Plated
BKTS-03 SUS304 SUS303 SUS304 Vibratory Grinding
