Brackets

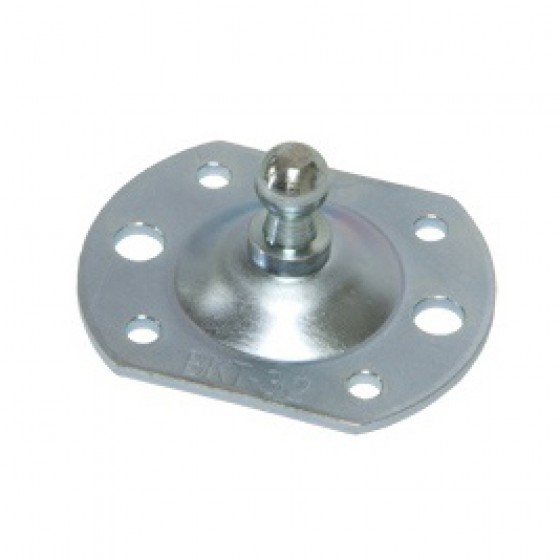

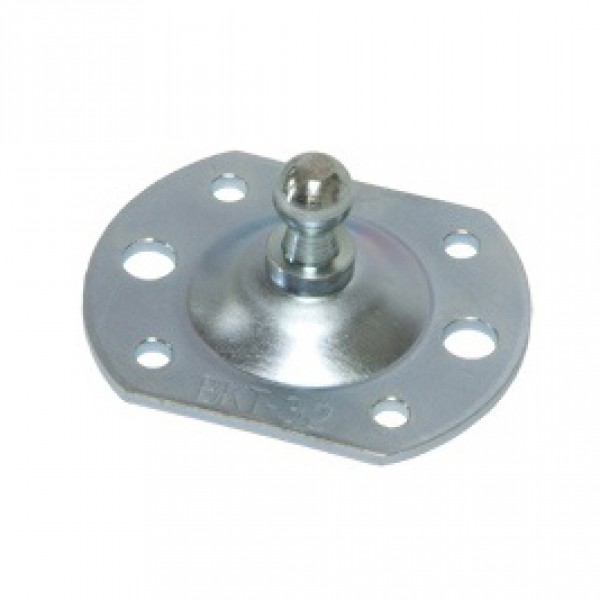

BKT-32 (Ball 10mm)    (Thickness 2mm)

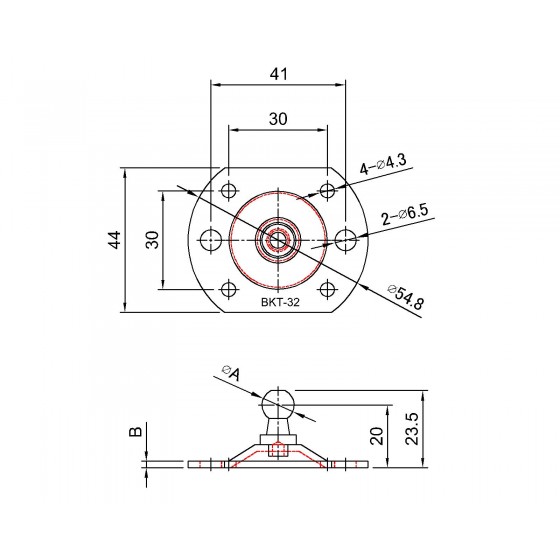

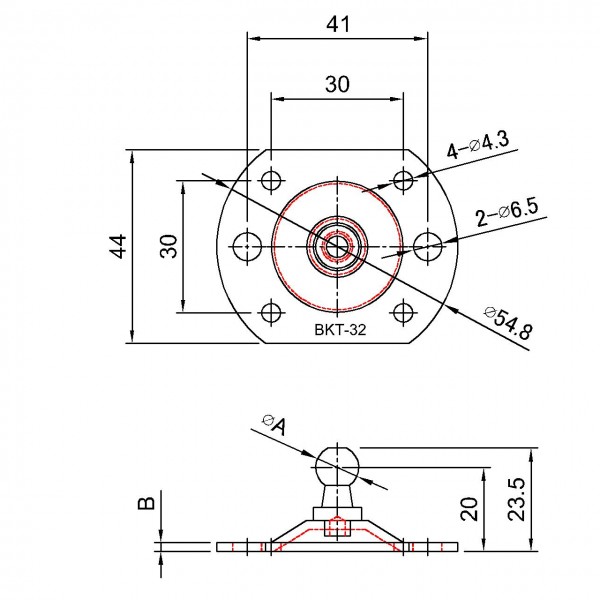

Product details

Unit:mm

Model No. Bolt or Ball
( ∅A )
Thickness
 ( B )
Bolt or Ball Material  Plate Material Surface Treatment Weight (g)
BKT-32 BLACK COATED 10 2 12L14 P-O Black Coated
BKTS-32 SUS304 SUS303 SUS304 Vibratory Grinding
