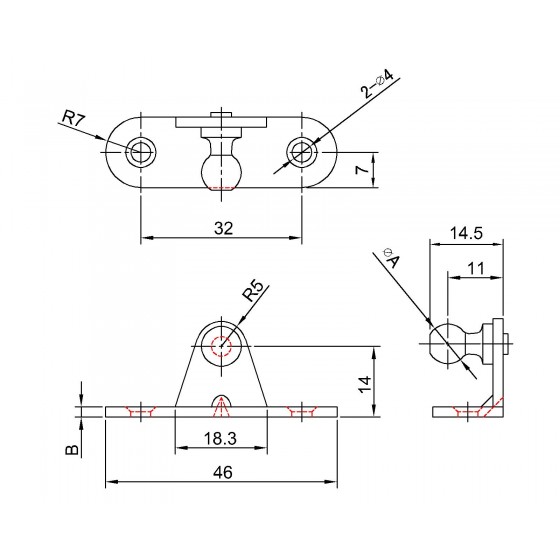

Unit:mm
Model No. | Bolt or Ball ( ∅A ) |
Thickness ( B ) |
Bolt or Ball Material | Plate Material | Surface Treatment | Weight (g) |
BKT-06C NICKEL | 8 | 2 | 12L14 | P-O | Nickel Plated | |
BKTS-06C SUS304 | SUS303 | SUS304 | Vibratory Grinding |
