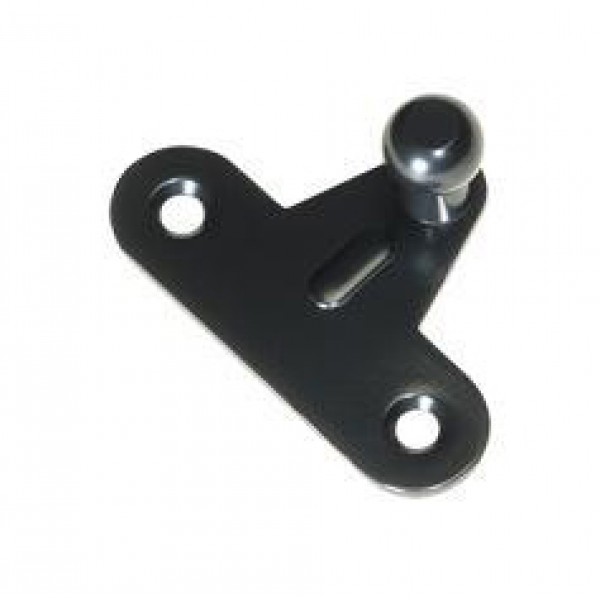

Brackets
BKT-08 (Ball 10mm)    (Thickness 2mm)
Product details

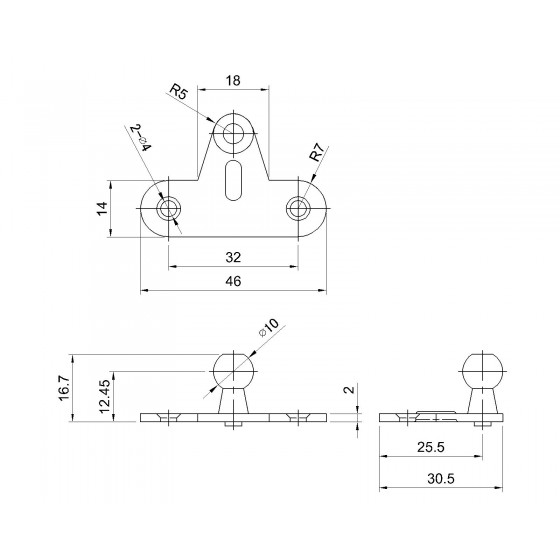

Unit:mm

Model No. Bolt or Ball
( ∅A )
Thickness
 ( B )
Bolt or Ball Material  Plate Material Surface Treatment Weight (g)
BKT-08 NICKEL 10 2 12L14  P-O Nickel Plated
BKT-08 BLACK COATED 12L14  P-O Black Coated
BKTS-08 SUS304 SUS303 SUS304 Vibratory Grinding
