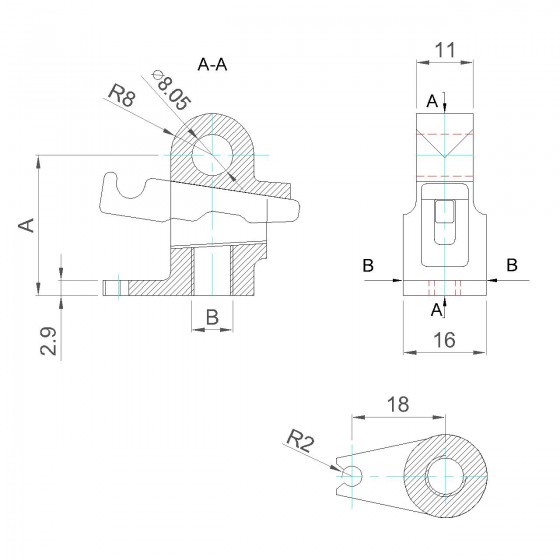

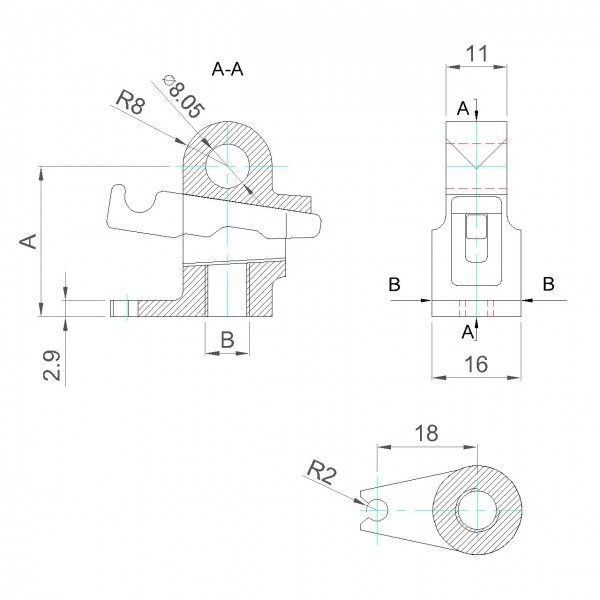

Unit:mm
| Part No. | Hole Center To End (A) |
Thread (B) |
Hole Dia. | Material |
| STDE-ACC-BOL-012820 | 27 | M8X1.0 | Ø8 | Alloy Die Casting |
| STDE-ACC-BOL-007409 | 27 | M10X1.0 | Ø8 | Alloy Die Casting |
1.PN: STDE-ACC-BOL-012820 Suit for: BOLOBT gas spring series
2.PN: STDE-ACC-BOL-007409 Suit for : BOL gas spring series、 BOL-T gas spring series

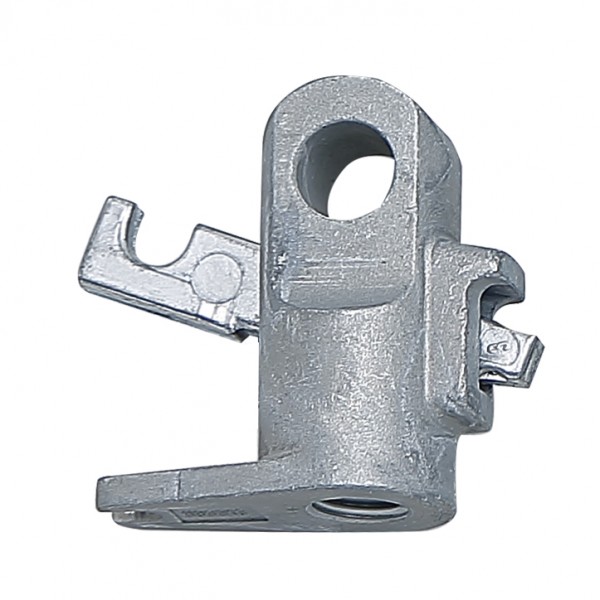

3.The Release head and lever requires a Bowden-wire and a Release unit, combined to form a switch mechanism.
