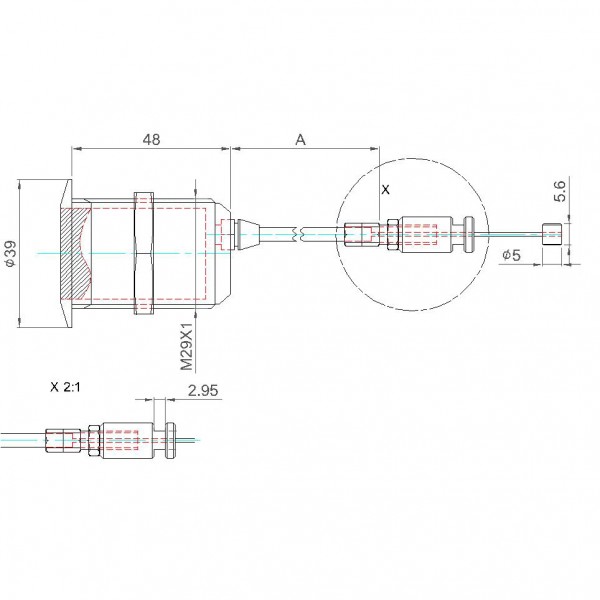

Unit:mm

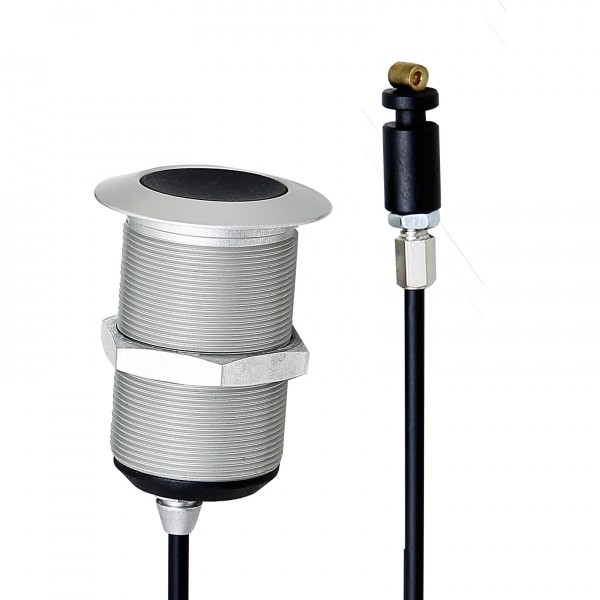

The flush push button is the original design of German STABILUS, which is specially provided to BOL series gas springs as a release system for activating the positioning type nitrogen cylinder switch.

The system on a device linked to Release Heads via wire, the button lets you design in an appropriate position, so that labor and easy operator.

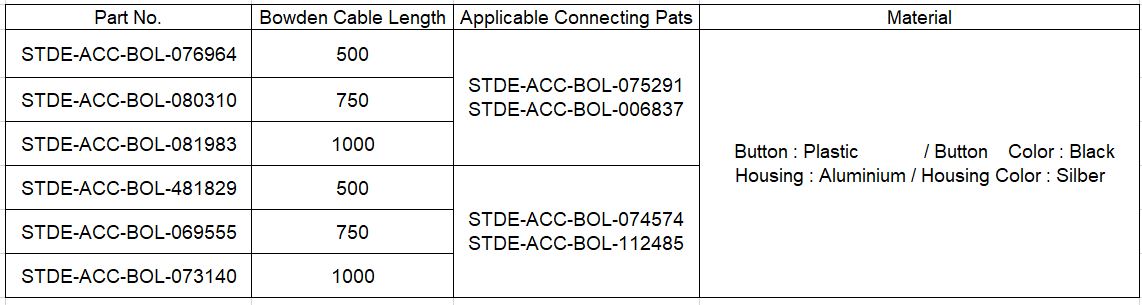

1. The following three types of embedded button controllers need to be used in combination with the Light release head type to form a complete release system.
PN : STDE-ACC-BOL-076964、STDE-ACC-BOL-080310、STDE-ACC-BOL-081983

2. The following three types of embedded button controllers need to be used in combination with the Ultra light release head type to form a complete release system.
PN : STDE-ACC-BOL-481829、STDE-ACC-BOL-069555、STDE-ACC-BOL-073140
