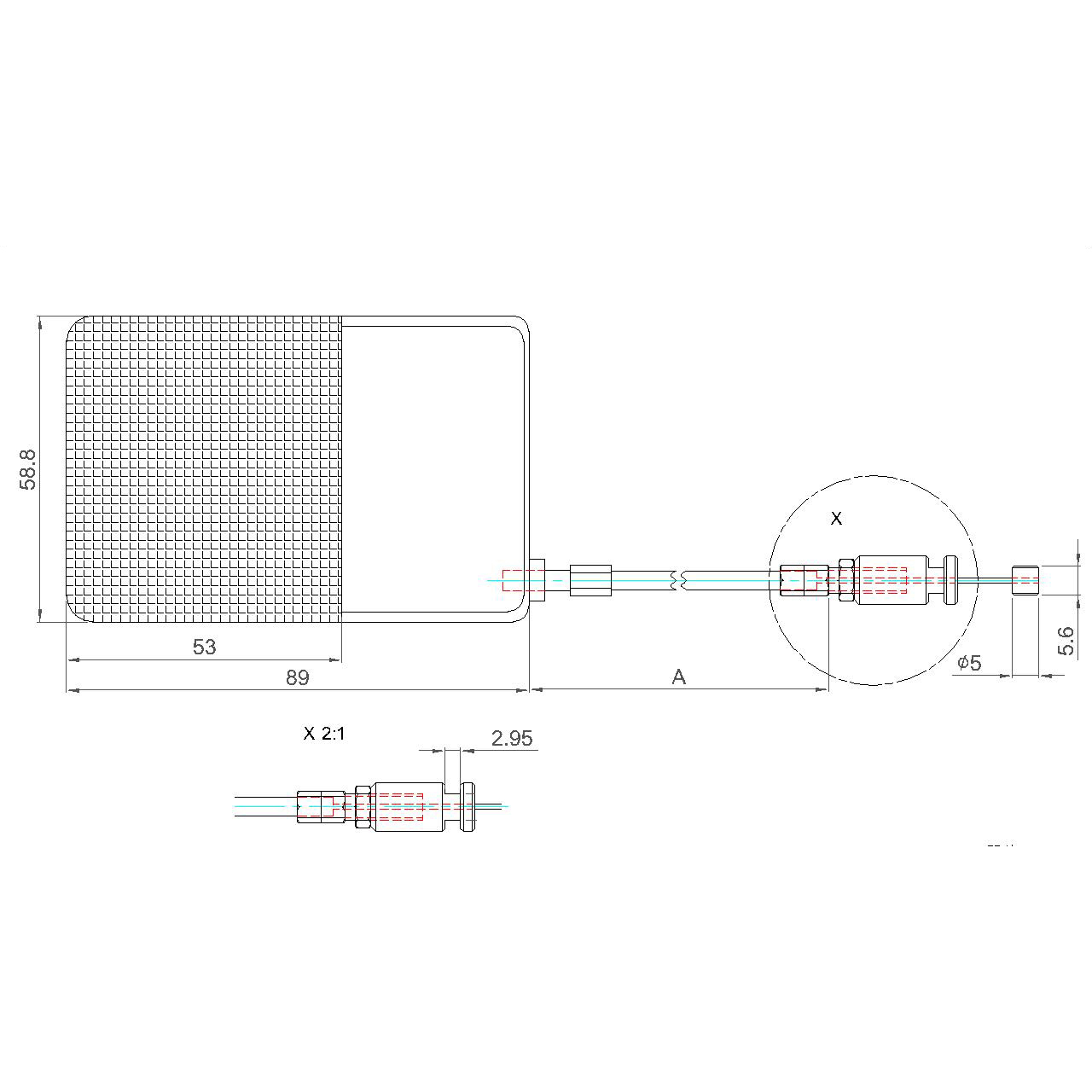

Unit:mm

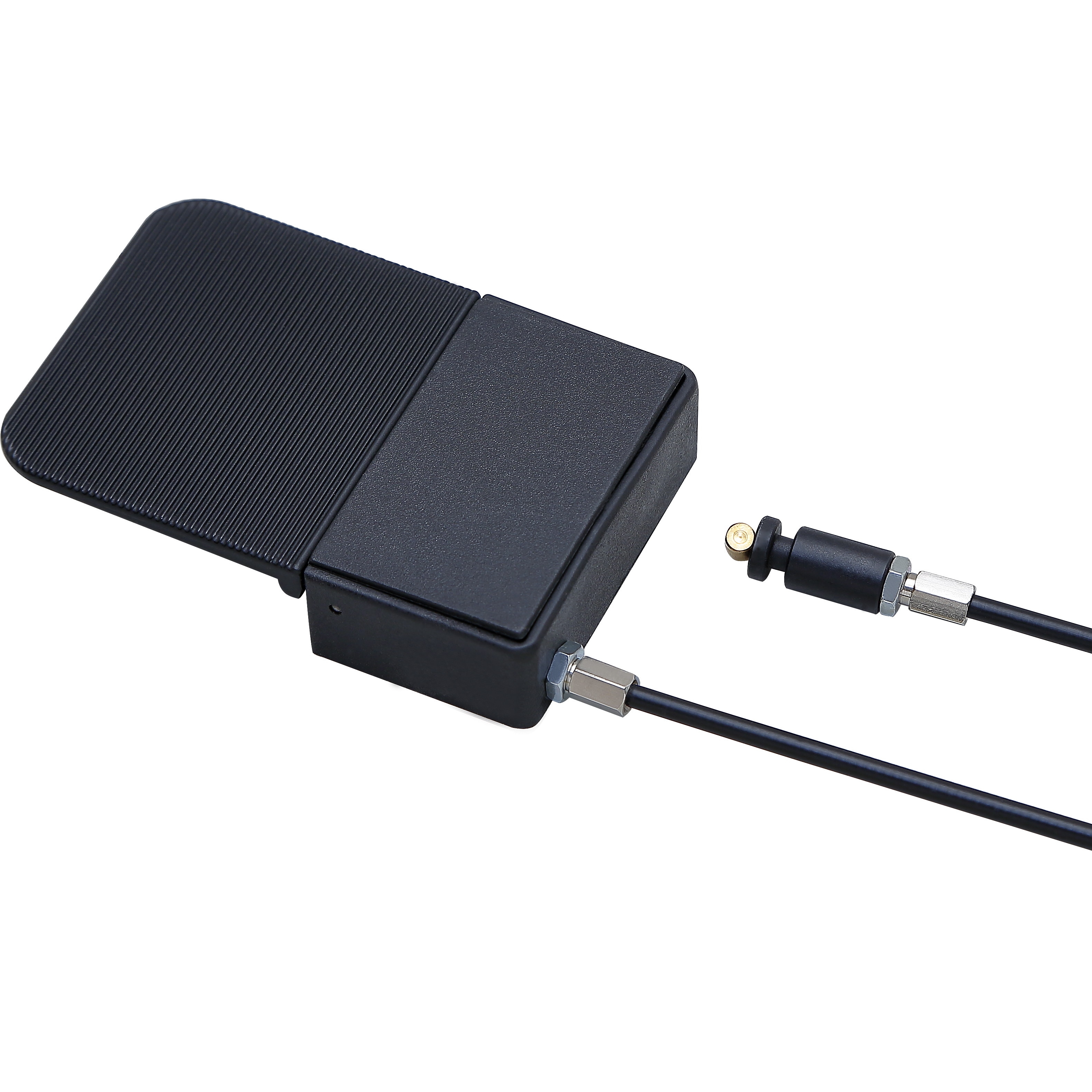

The flat button controllers is the original design of German STABILUS, which is specially provided to BOL series gas springs as a release system for activating the positioning type nitrogen cylinder switch.

The system on a Release Heads via bowden wire, the button lets you design in an appropriate position


1. The following three types of button controllers need to be used in combination with the Light release head type to form a complete release system.
PN : STDE-ACC-BOL-088197、STDE-ACC-BOL-088675、STDE-ACC-BOL-104927

2. The following three types of button controllers need to be used in combination with the Ultra light release head type to form a complete release system.
PN : STDE-ACC-BOL-068838、STDE-ACC-BOL-088436、STDE-ACC-BOL-105166
