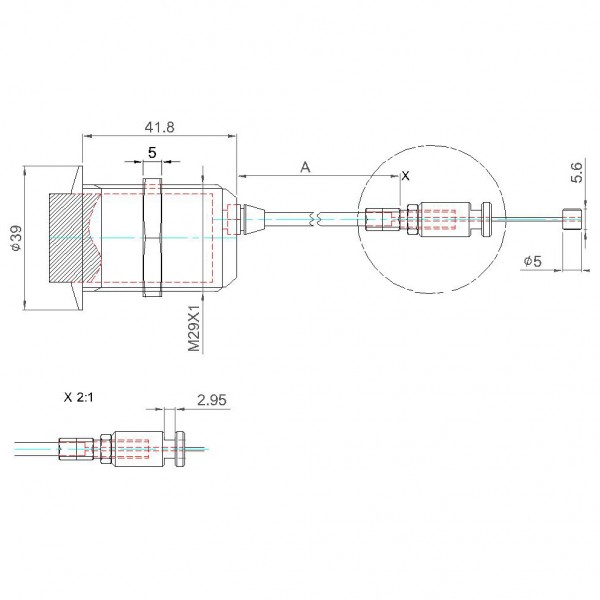

Unit:mm

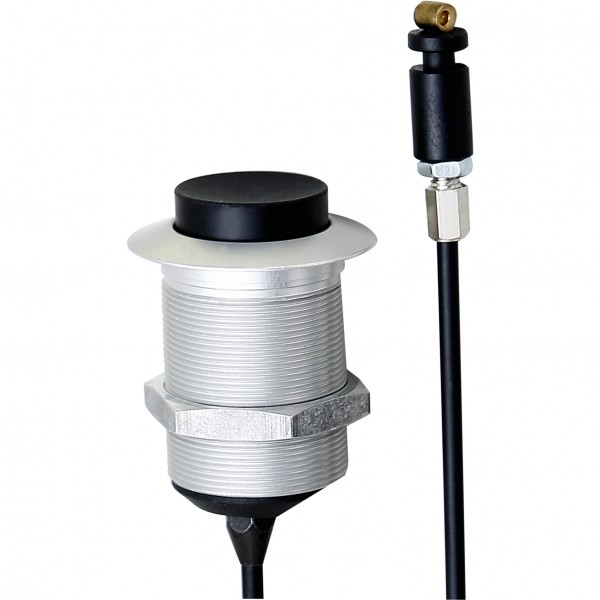

The protruding push button controllers is the original design of German STABILUS, which is specially provided to BOL series gas springs as a release system for activating the positioning type nitrogen cylinder switch.
The system on a device linked to Release Heads via wire, the button lets you design in an appropriate position , so that labor and easy operator.

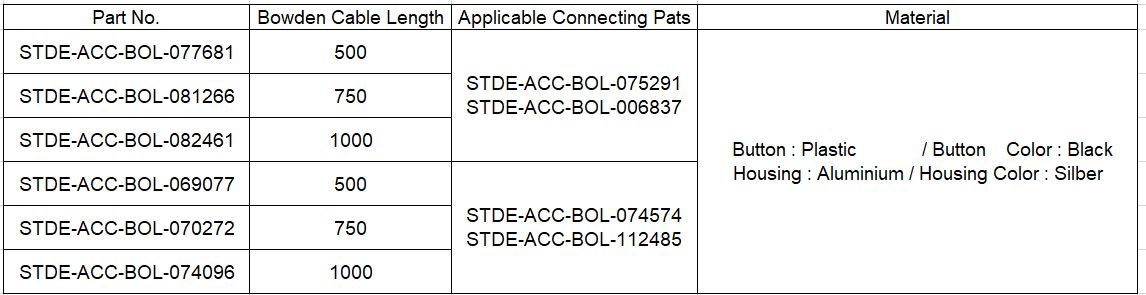

1. The following three types of button controllers need to be used in combination with the Light release head type to form a complete release system.
PN : STDE-ACC-BOL-077681、STDE-ACC-BOL-081266、STDE-ACC-BOL-082461
2. The following three types of button controllers need to be used in combination with the Ultra light release head type to form a complete release system.
PN : STDE-ACC-BOL-069077、STDE-ACC-BOL-070272、STDE-ACC-BOL-074096
