Unit:mm

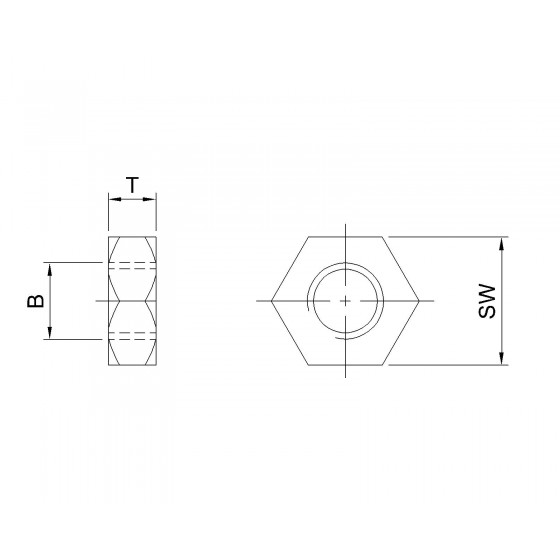

| Model No. | Nut thickness (T) |
Thread ( F ) | SW | Material | Surface Treatment | Weight (g) |
| NUT-M6X1.0 YELLOW | 3 | M6X1.0 | 10 | 12L14 | Yellow Zinc Plated | |
| NUT-M8X1.0-BLK ZIN | 5 | M8X1.0 | 13 | 12L14 | Black Zinc Plated | |
| NUT-M8X1.25-BLK ZIN | 6.5 | M8X1.25 | 13 | 12L14 | Black Zinc Plated | |
| NUT-M10X1.0 YELLOW | 6 | M10X1.0 | 17 | 12L14 | Yellow Zinc Plated |
