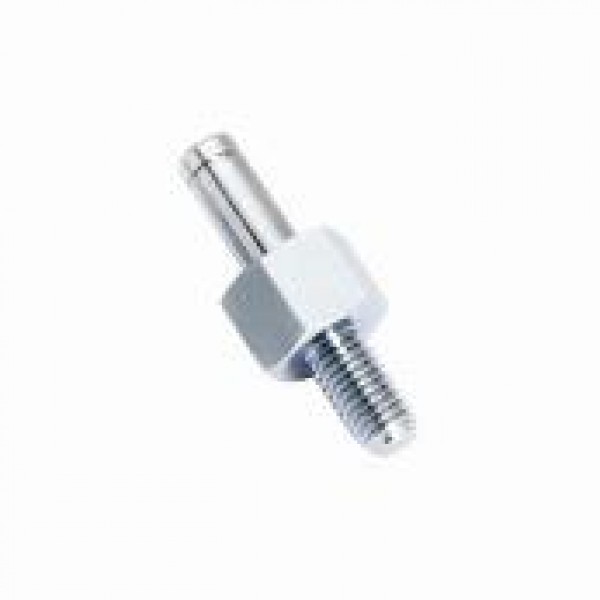

Ball Studs
SW6411(HEX)
Continue to buy
Inquiry immediately
Product details





                                                  suitable for thick 10~12mm and dia. 8mm gas spring connection

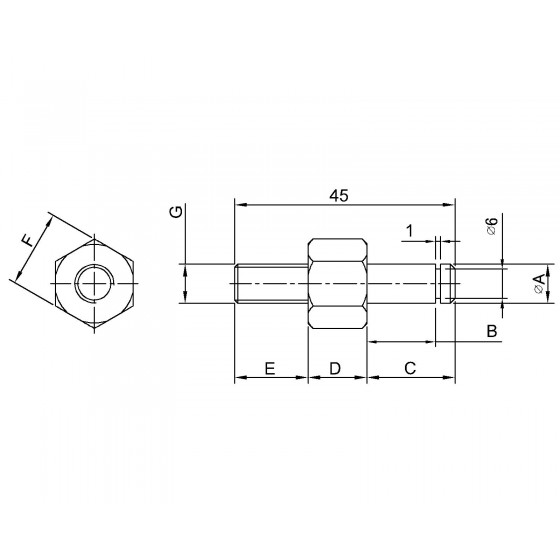

                                            Unit:mm

Model No. BOLT Dia( A ) B C D E F Thread ( G ) Material Surface Treatment Weight (g)
SW6411 ZINC ∅8 14 18 12 15 15.8 M8X1.25 12L14 White Zinc Plated 　
