Unit:mm

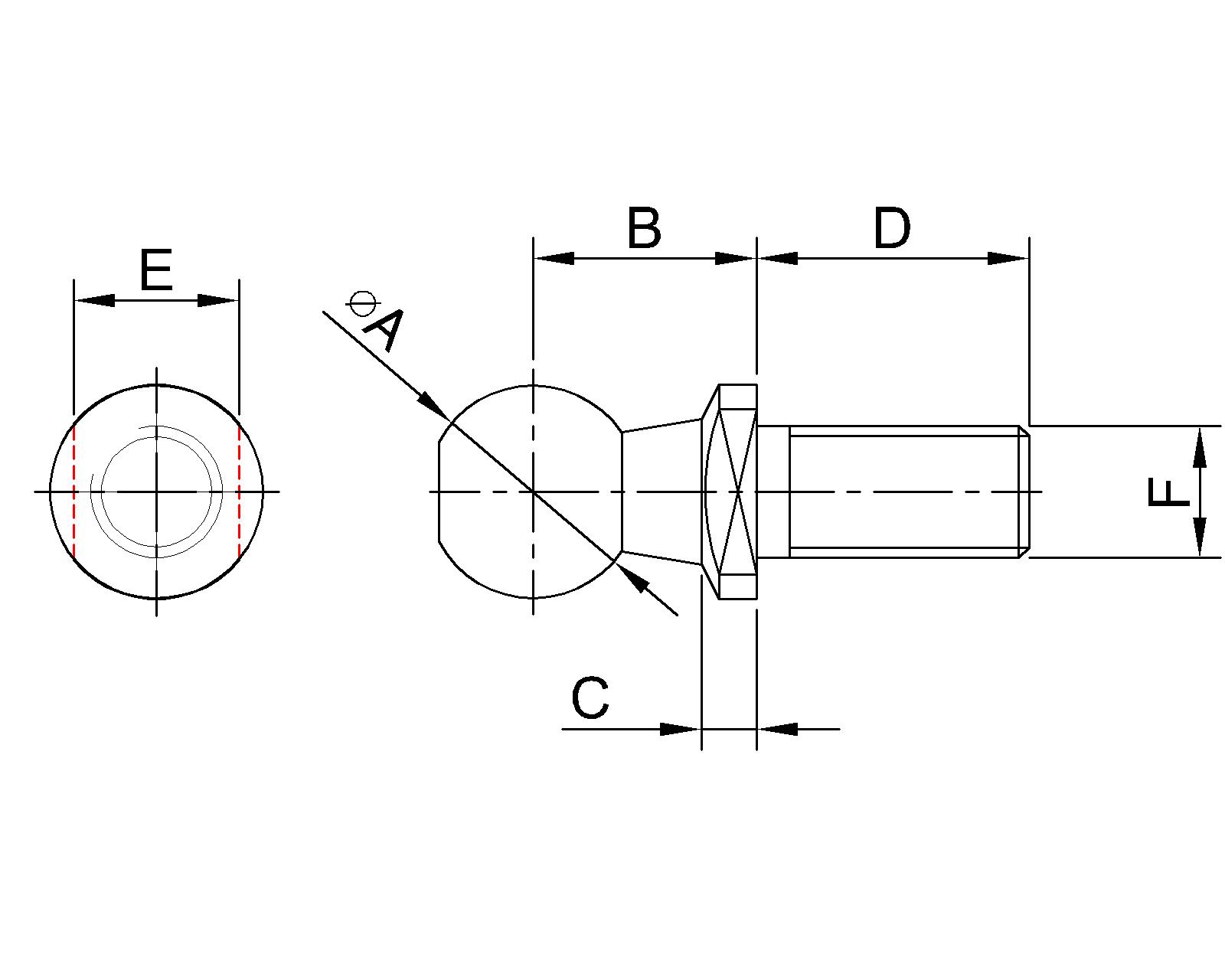

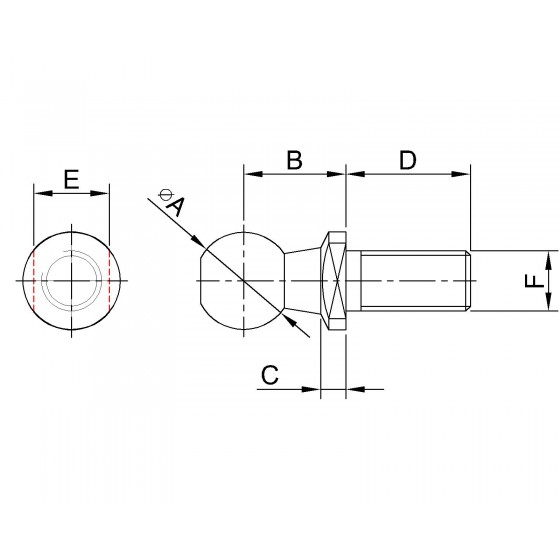

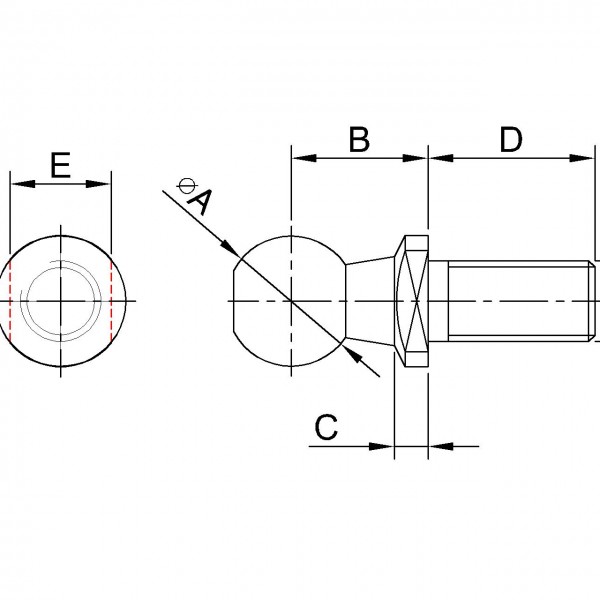

| Model No. | Ball Dia. ( A ) | B | C | D | E | Thread ( F ) | Material | Surface Treatment | Weight (g) |
| SW7M4 ZINC | ∅8 | 9 | 2.5 | 10 | 7 | M4X0.7 | 12L14 | White Zinc Plated | |
| SW7M5 ZINC | M5X0.8 | 12L14 | White Zinc Plated | ||||||
| SWS7M5 SUS303 | SUS303 | Vibratory Grinding | |||||||
| SW-352950 | ∅13 | 13 | 2.8 | 16.3 | 11 | M10X1.5 | STDE | White Zinc Plated | |
| SW18 BLACK ZINC | ∅16 | 17.4 | 3 | 20 | 13 | 12L14 | Black Zinc Plated |
