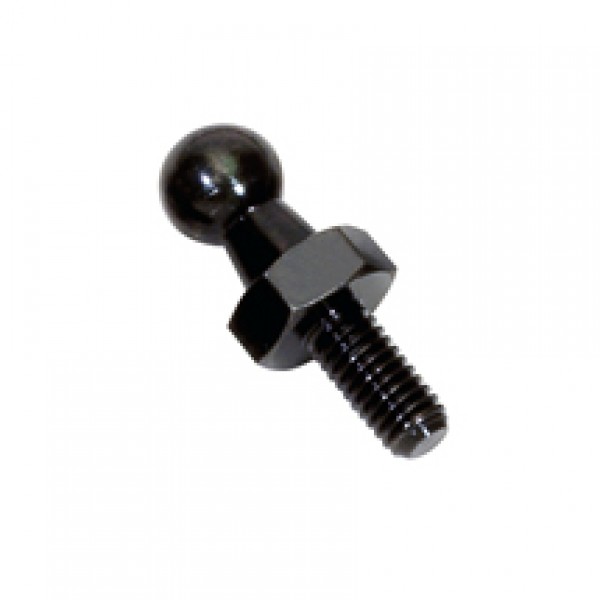

HEX. Ball Dia. 10mm
Continue to buy
Inquiry immediately
Product Details

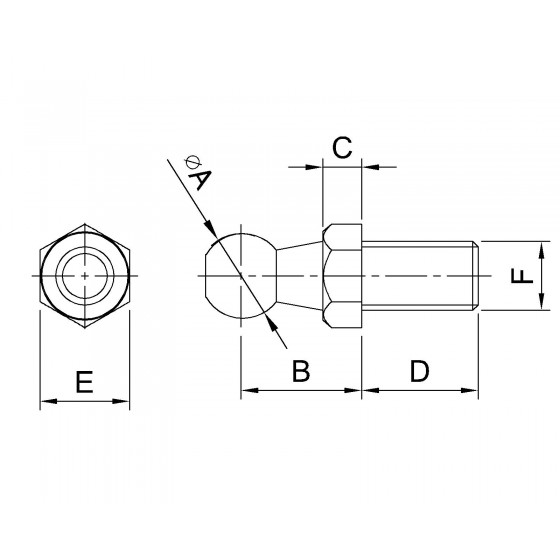

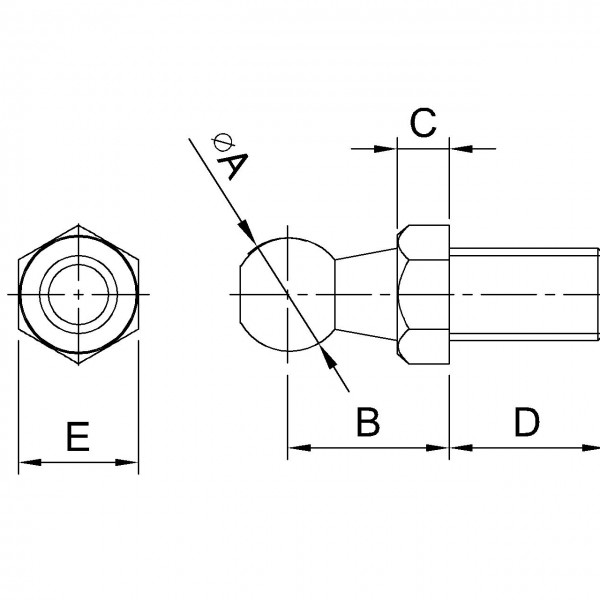

Unit:mm


Model No. Ball Dia. ( A ) B C D E Thread ( F ) Material Surface Treatment Weight (g)
SWS-8 SUS303 ∅10 14 3 13 8 M6X1.0 SUS303 Vibratory Grinding 　
SW11 BLACK ZINC 14.2 4.9 12.5 12 12L14 Black Zinc Plated 　
SW12 BLACK ZINC 14 4.5 13.5 12 M8X1.25 12L14 Black Zinc Plated 　
SWS-12 SUS303 SUS303 Vibratory Grinding 　
SW13 BLACK ZINC 12.5 3 12.5 13 12L14 Black Zinc Plated 　
SWS-13 SUS303 SUS303 Vibratory Grinding 　
SW177583 BLACK ZINC 12 3 16.5 13 12L14 Black Zinc Plated 　
