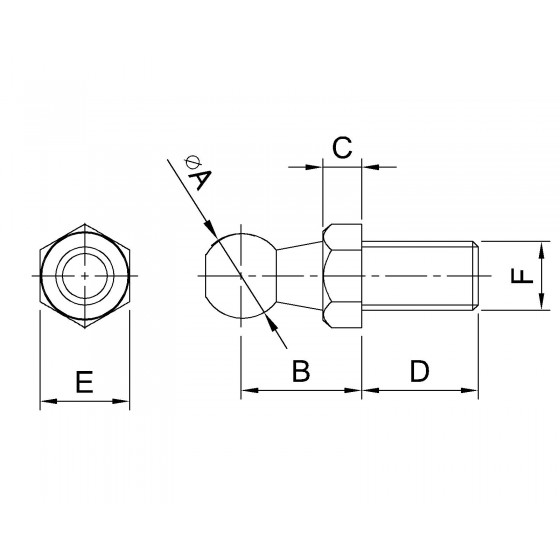

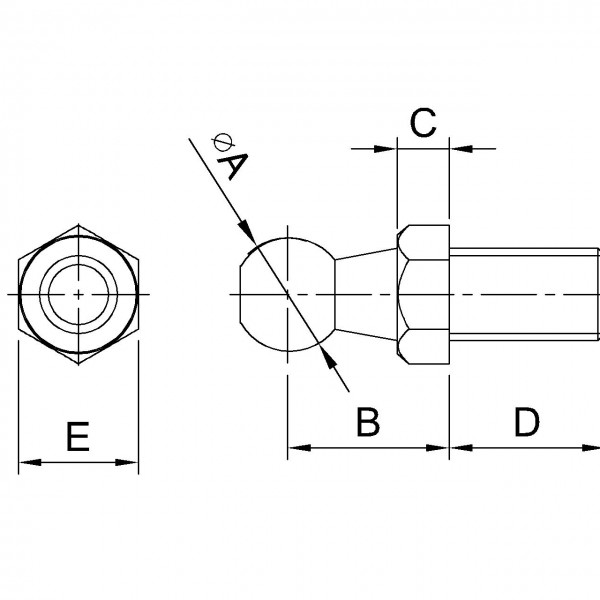

Unit:mm
| Model No. | Ball Dia. ( A ) | B | C | D | E | Thread ( F ) | Material | Surface Treatment | Weight (g) |
| SW14 BLACK ZINC | ∅13 | 15 | 4.5 | 12.5 | 13 | M8X1.25 | 12L14 | Black Zinc Plated | |
| SWS-14 SUS303 | SUS303 | Vibratory Grinding | |||||||
| SW17 YELLOW ZINC | 22.5 | 10 | 20 | 1015 | Yellow Zinc Plated | ||||
| SW4611 ZINC | 13.5 | 3 | 15 | 12L14 | White Zinc Plated | ||||
| SW8272 ZINC | 14 | 3 | 20 | 17 | M10X1.5 |
