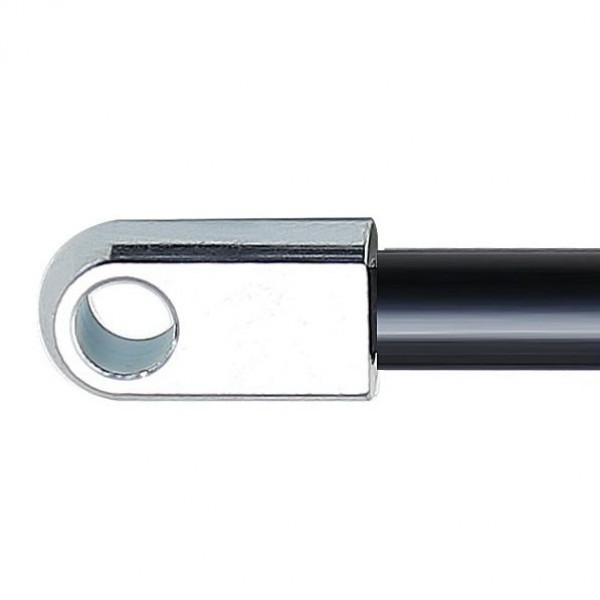

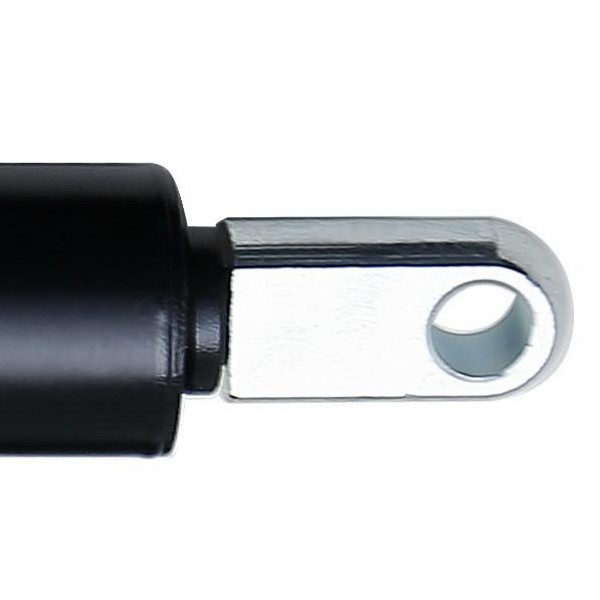

HD24C-L5M808 Eyelet (Metal)
Continue to buy
Inquiry immediately
Product Details


Unit: mm

9.8 Newton(N) = 1kg = 2.2LBS


Model No. 1)
Stroke (A)		 2)
Stroke (A*)		 Extended
Length (B)		 3)4)
Tension Force FZ (N)		 3)5)
Compression FD (N)		 Weight (g) Remark
HD24C-348-L508-650N 80 130 348 <100 650 　 　
HD24C-348-L508-1500N <100 1500 　 　
HD24C-348-L508-3000N <100 3000 　 　
HD24C-464-L508-650N 120 188 464 <100 650 　 　
HD24C-464-L508-1500N <100 1500 　 　
HD24C-464-L508-3000N <100 3000 　 　
HD24C-698-L508-650N 200 305 698 <100 650 　 　
HD24C-698-L508-1500N <100 1500 　 　
HD24C-698-L508-3000N <100 3000 　 　
