Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS

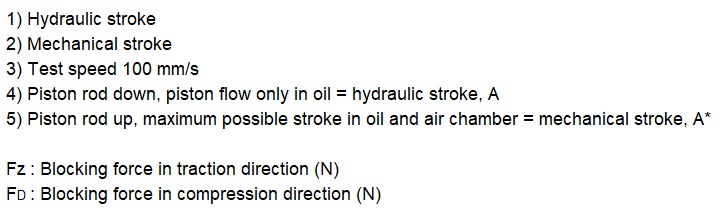

| Model No. | 1) Stroke (A) |
2) Stroke (A*) |
Extended Length (B) |
3)4) Tension Force FZ (N) |
3)5) Compression FD (N) |
Weight (g) | Remark |
| HD15C-198-C920-125N | 30 | 60 | 198 | <25 | 125 | ||
| HD15C-198-C920-250N | <25 | 250 | |||||
| HD15C-198-C920-550N | <25 | 550 | |||||
| HD15C-288-C920-125N | 60 | 105 | 288 | <25 | 125 | ||
| HD15C-288-C920-250N | <25 | 250 | |||||
| HD15C-288-C920-550N | <25 | 550 | |||||
| HD15C-398-C920-125N | 100 | 160 | 398 | <25 | 125 | ||
| HD15C-398-C920-250N | <25 | 250 | |||||
| HD15C-398-C920-550N | <25 | 550 |
