8mmx18mm (100N~650N) Enter Choose End Fitting

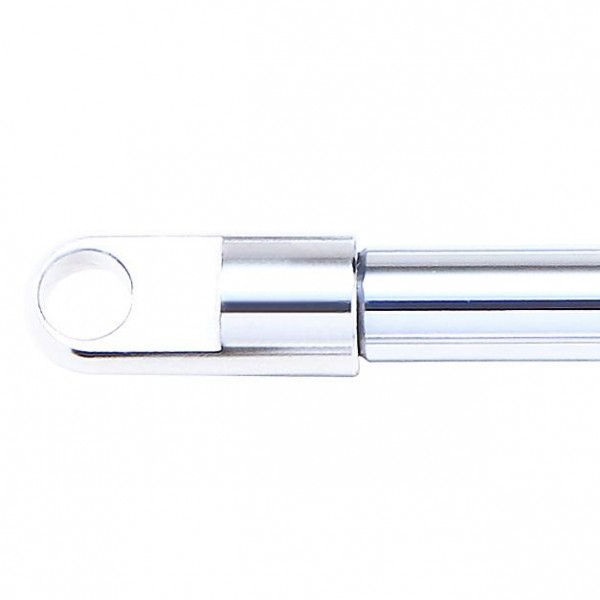

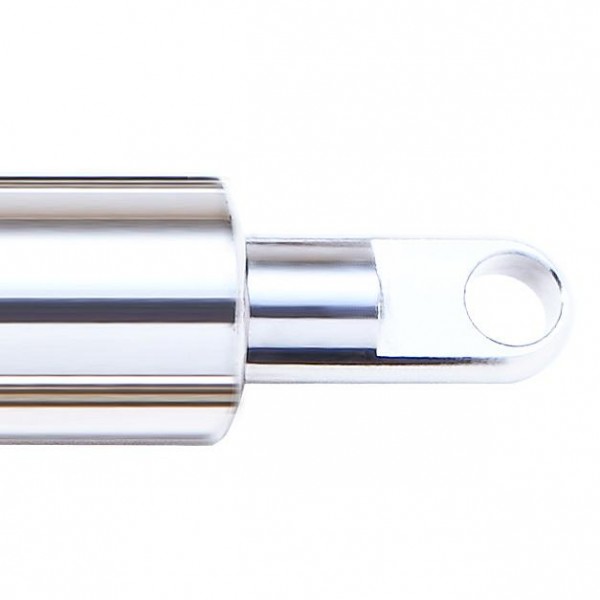

L1S-0818 Eyelet( Hole 6mm)Select Spec.
Product details


Unit:mm
9.8 Newton(N)=1 Kg=2.2 LBS

Model No. Stroke
(A)
Extended
Length (B)
Force
Range (N)
Weight (g) Remark
 BS060201-L1S-XXXN   60 201 100~650N
 BS080241-L1S-XXXN   80 241 100~650N
 BS100281-L1S-XXXN 100 281 100~650N
 BS120321-L1S-XXXN 120 321 100~650N
 BS140361-L1S-XXXN 140 361 100~650N
 BS160401-L1S-XXXN 160 401 100~650N
 BS180441-L1S-XXXN 180 441 100~650N
 BS200481-L1S-XXXN 200 481 100~650N
 BS220521-L1S-XXXN 220 521 100~650N
 BS250581-L1S-XXXN 250 581 100~650N

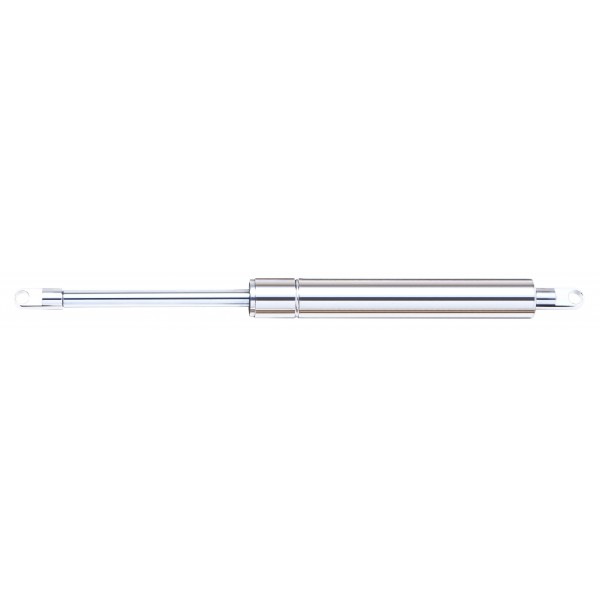

SUPERSEN-Stainless Steel Gas Spring


SUPERSEN stainless steel gas spring is particularly corrosion resistant due to the use of AISI 316L steel.



It is used in special environments, such as sea water, sea air or area covered with exhaust of industry.



SUPERSEN stainless steel gas spring’s efficiency of corrosion will ensure a high level of protection including the acid or alkaline environment.



Chosen materials carefully for gas spring components yield a virtually iron-free, non-magnetic product.



SUPERSEN stainless steel gas springs are especially used in medical and military machines as barely interfere with magnetic environment.



The oil used in the SUPERSEN gas springs are eco-friendly and classified as no hazard.

Features And Advantages:

a. High corrosion protection

b. Compact design

c. Non-magnetic

d. Environmentally friendly

e. Maintenance-free



※WHEN YOU MAKING ENQUIRY, PLEASE ADVISE US THE F1(NEWTON) FORCE REQUEST.

Other size also available, Please contact us for further information.
