Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
| Model No. | Stroke (A) |
Extended Length (B) |
Force Range (N) |
Weight (g) | Remark |
| BS060205-L5S08-XXXN | 60 | 205 | 100~650N | ||
| BS080245-L5S08-XXXN | 80 | 245 | 100~650N | ||
| BS100285-L5S08-XXXN | 100 | 285 | 100~650N | ||
| BS120325-L5S08-XXXN | 120 | 325 | 100~650N | ||
| BS140365-L5S08-XXXN | 140 | 365 | 100~650N | ||
| BS160405-L5S08-XXXN | 160 | 405 | 100~650N | ||
| BS180445-L5S08-XXXN | 180 | 445 | 100~650N | ||
| BS200485-L5S08-XXXN | 200 | 485 | 100~650N | ||
| BS220525-L5S08-XXXN | 220 | 525 | 100~650N | ||
| BS250585-L5S08-XXXN | 250 | 585 | 100~650N |

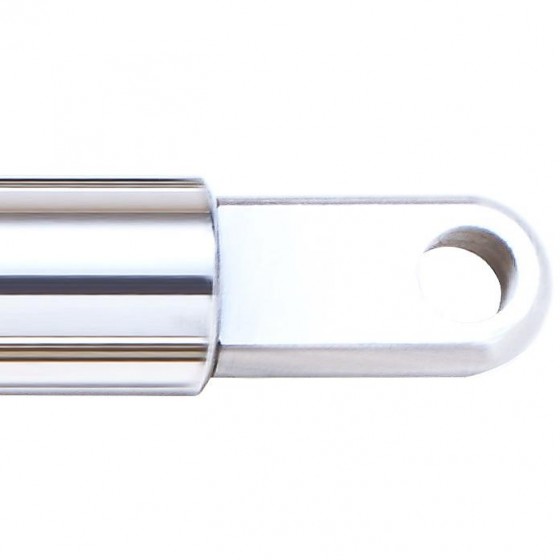

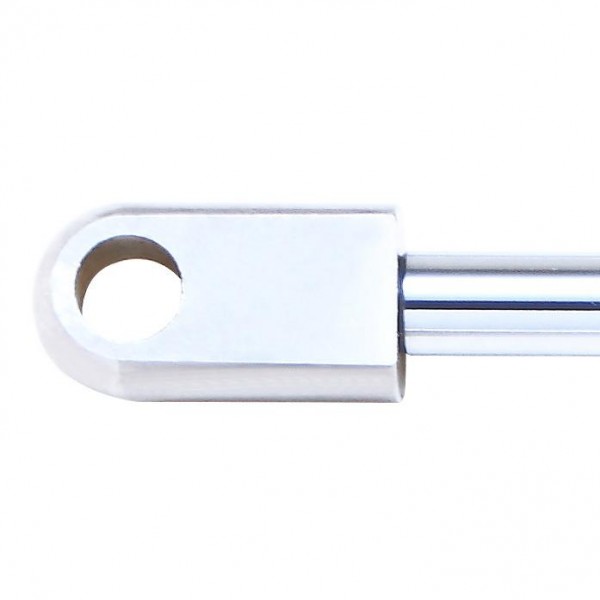

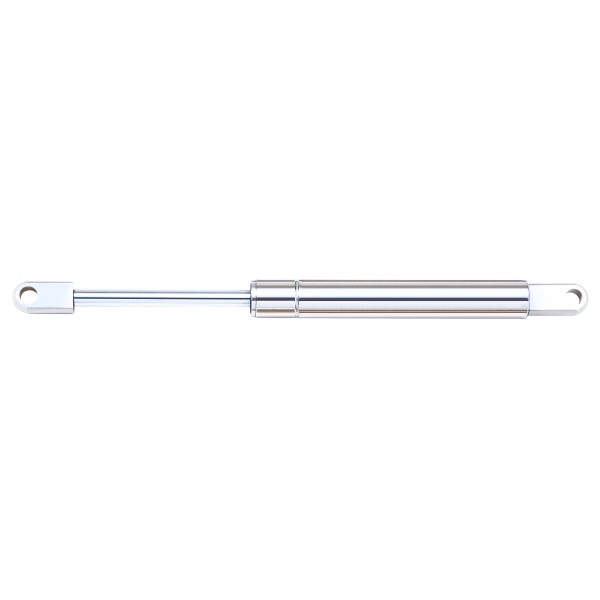

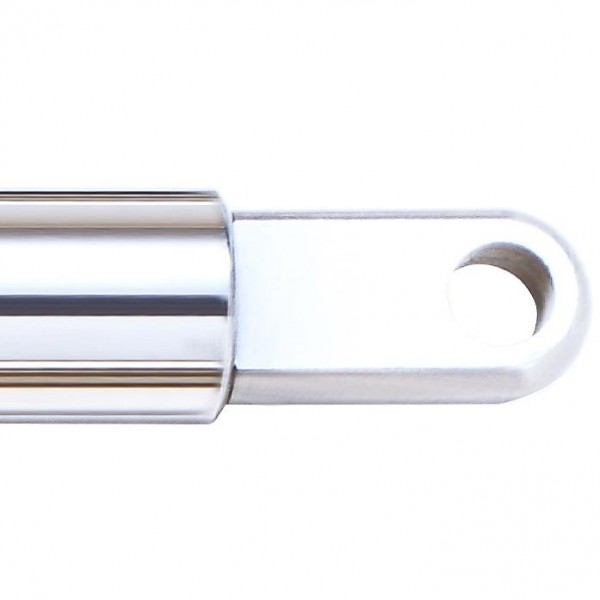

SUPERSEN-Stainless Steel Gas Spring
SUPERSEN stainless steel gas spring is particularly corrosion resistant due to the use of AISI 316L steel.
It is used in special environments, such as sea water, sea air or area covered with exhaust of industry.
SUPERSEN stainless steel gas spring’s efficiency of corrosion will ensure a high level of protection including the acid or alkaline environment.
Chosen materials carefully for gas spring components yield a virtually iron-free, non-magnetic product.
SUPERSEN stainless steel gas springs are especially used in medical and military machines as barely interfere with magnetic environment.
The oil used in the SUPERSEN gas springs are eco-friendly and classified as no hazard.
Features And Advantages:
a. High corrosion protection
b. Compact design
c. Non-magnetic
d. Environmentally friendly
e. Maintenance-free
※WHEN YOU MAKING ENQUIRY, PLEASE ADVISE US THE F1(NEWTON) FORCE REQUEST.
Other size also available, Please contact us for further information.
