Unit: mm
9.8 Newton(N) = 1kg = 2.2LBS

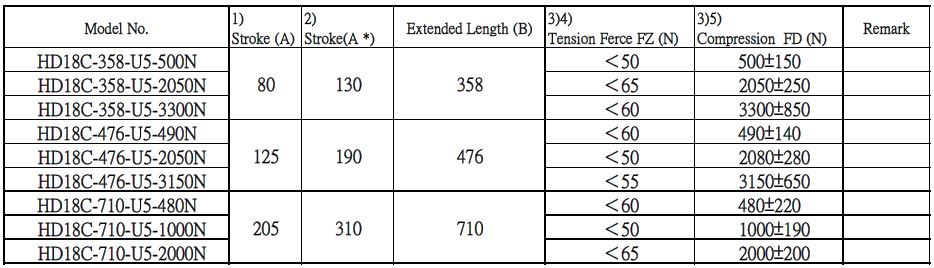

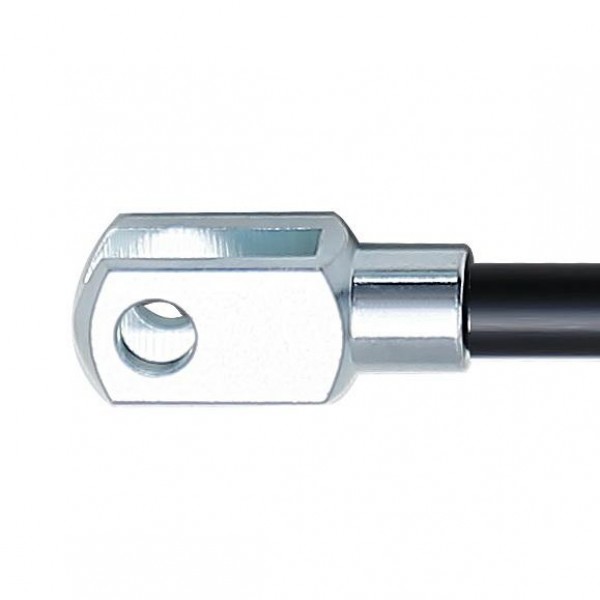

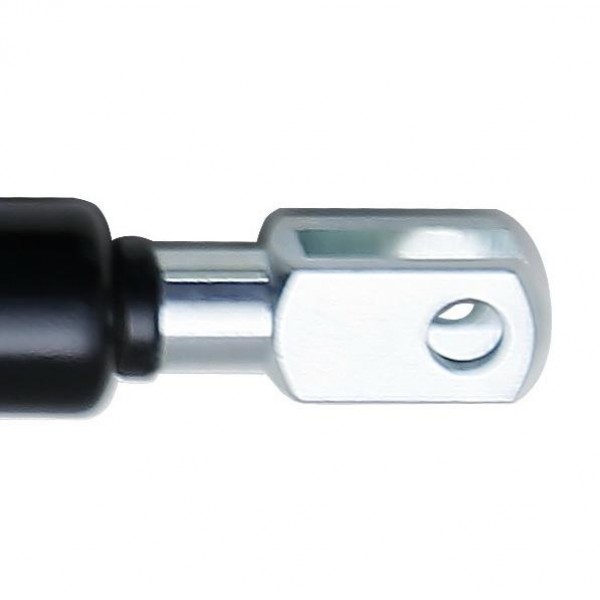

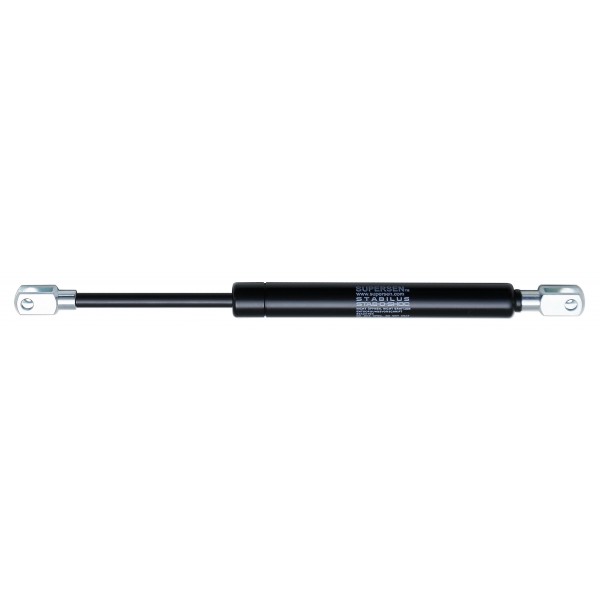

| Model No. | 1) Stroke (A) |
2) Stroke (A*) |
Extended Length (B) |
3)4) Tension Force FZ (N) |
3)5) Compression FD (N) |
Weight (g) | Remark |
| HD18C-358-U5-500N | 80 | 130 | 358 | <50 | 500±150 | ||
| HD18C-358-U5-2050N | <50 | 2050±250 | |||||
| HD18C-358-U5-3300N | <50 | 3300±850 | |||||
| HD18C-476-U5-490N | 125 | 190 | 476 | <50 | 490±140 | ||
| HD18C-476-U5-2080N | <50 | 2080±280 | |||||
| HD18C-476-U5-3150N | <50 | 3150±650 | |||||
| HD18C-710-U5-480N | 205 | 310 | 710 | <50 | 480±220 | ||
| HD18C-710-U5-1000N | <50 | 1000±190 | |||||
| HD18C-710-U5-2000N | <50 | 2000±200 |
*The max force tolerance is ±30% for the HD18 series Oil Damper-SOS
1) Hydrauilc stroke
2) Mechanical stroke
3) Test speed 100 mm/s
4) Piston rod down, piston flow only in oil = hydraulic stroke, A
5) Piston rod up, maximum possible stroke in oil and air chamer = mechanical stroke,A*
FZ : Blocking force in traction direction (N)
FD : Blocking force in compression direction (N)
