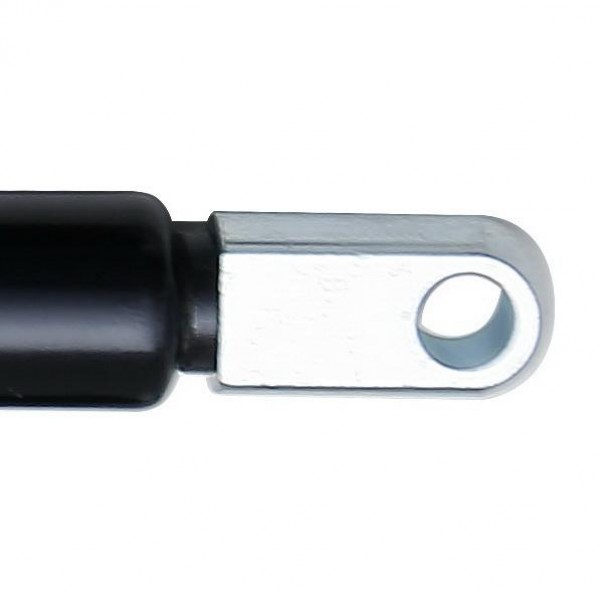

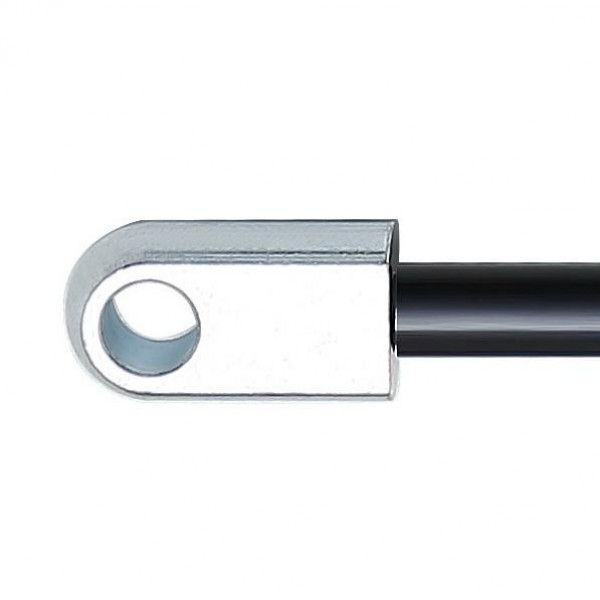

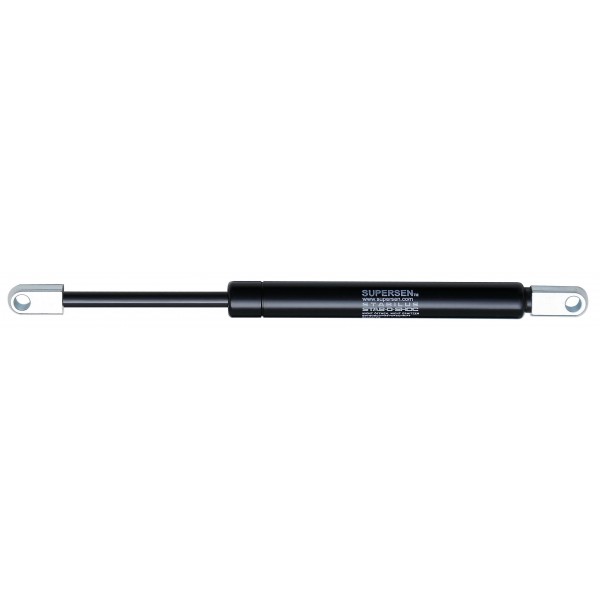

Unit:mm
9.8 Ncwton(N) = 1kg = 2.2LBS
| Model No. | 1) Stroke (A) |
2) Stroke (A*) |
Extended Length (B) |
3)4) Tension Force FZ (N) |
3)5) Compression FD (N) |
Weight (g) | Remark |
| HD18E-271-L508-1000N | 80 | 80 | 271 | 1000±100 | <50 | ||
| HD18E-271-L508-1590N | 1590±330 | <50 | |||||
| HD18E-271-L508-1870N | 1870±580 | <50 | |||||
| HD18E-360-L508-1040N | 120 | 120 | 360 | 1040±100 | <50 | ||
| HD18E-360-L508-1600N | 1600±280 | <50 | |||||
| HD18E-360-L508-2200N | 2200±450 | <50 | |||||
| HD18E-433-L508-870N | 148 | 148 | 433 | 870±180 | <50 | Test Speed: 50mm/s | |
| HD18E-538-L508-1000N | 200 | 200 | 538 | 1000±100 | <50 | ||
| HD18E-538-L508-1610N | 1610±270 | <50 | |||||
| HD18E-538-L508-2100N | 2100±830 | <50 |

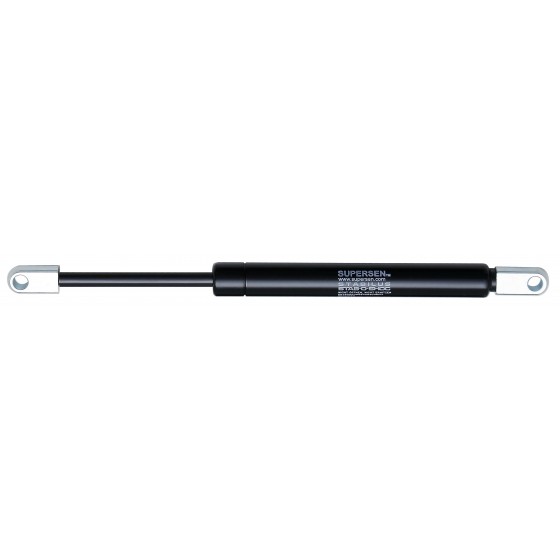

*The max force tolerance is ±30% for the HD18 series Oil Damper-SOS
1) Hydrauilc stroke
2) Mechanical stroke
3) Test speed 100 mm/s
4) Piston rod down, piston flow only in oil = hydraulic stroke, A
5) Piston rod up, maximum possible stroke in oil and air chamer = mechanical stroke,A*
FZ : Blocking force in traction direction (N)
FD : Blocking force in compression direction (N)
