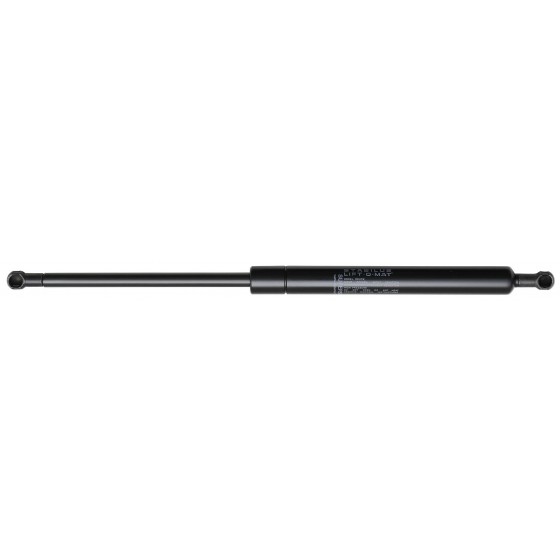

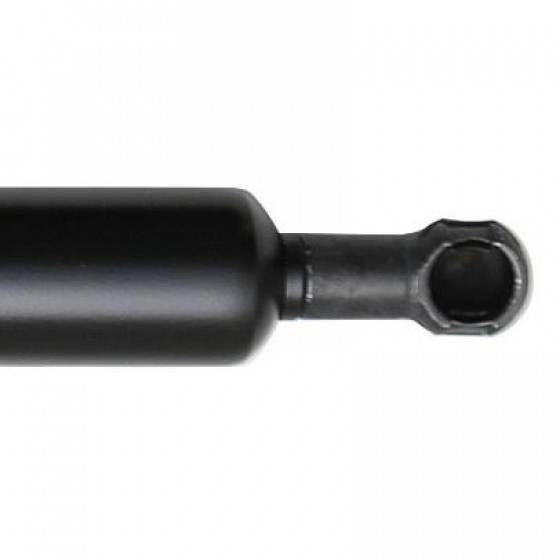

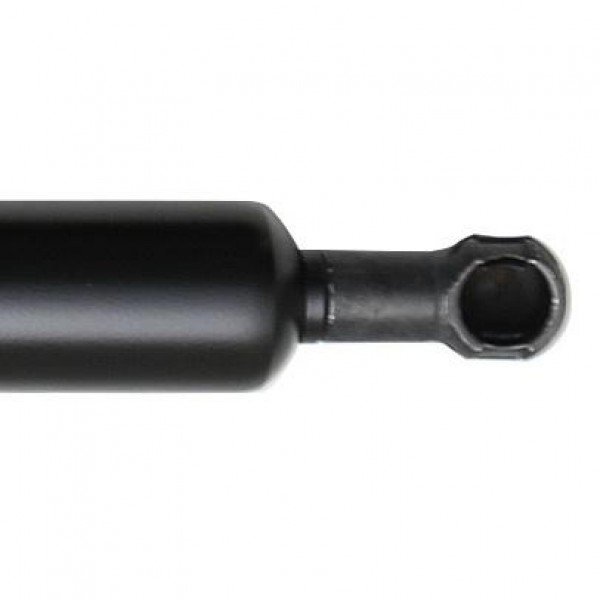

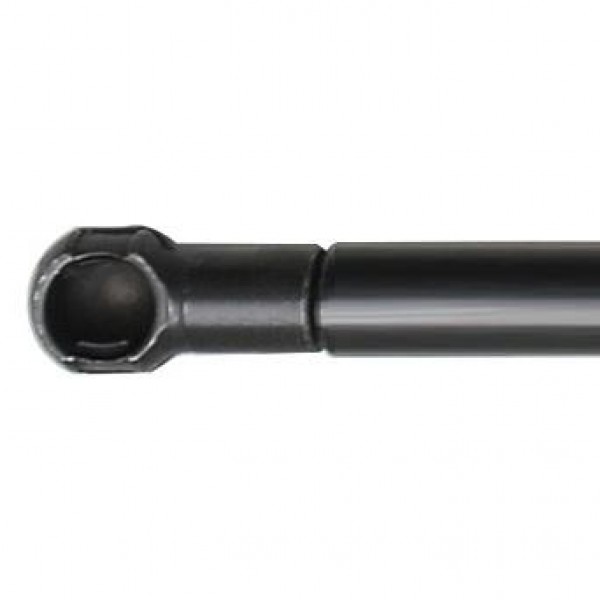

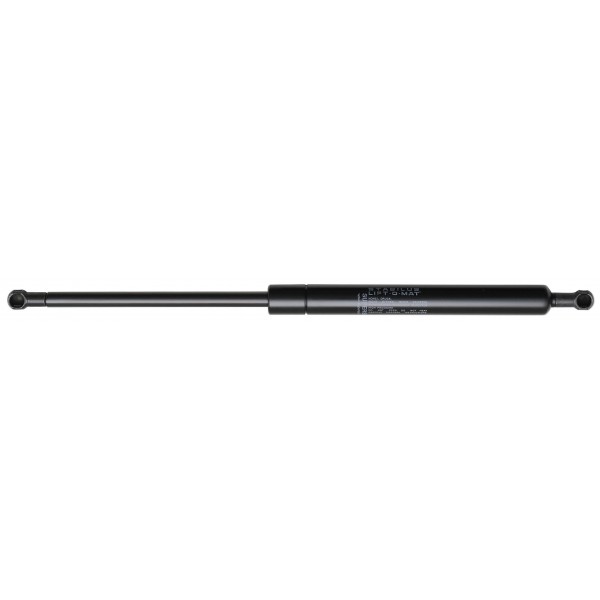

台灣安肯-M1925M8-1428 Socket (Metal)(Hole 13mm)Select Spec

14mmx28mm (300N~2500N) Enter Choose End Fitting

Home
14mmx28mm (300N~2500N) Enter Choose End Fitting
M1925M8-1428 Socket (Metal)(Hole 13mm)Select Spec

M1925M8-1428 Socket (Metal)(Hole 13mm)Select Spec

Product details

Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS

THE FOLLOWING SPECIFICATION ARE GERMANY STANDARD SIZE.

Model No.	Stroke (A)	Extended Length (B)	Force Rang (N)	Weight (g)	Remark
SB4-315-M1925M8-XXXN	100	315	300~2500N
SB4-415-M1925M8-XXXN	150	415	300~2500N
SB4-515-M1925M8-XXXN	200	515	300~2500N
SB4-615-M1925M8-XXXN	250	615	300~2500N
SB4-715-M1925M8-XXXN	300	715	300~2500N
SB4-815-M1925M8-XXXN	350	815	300~2500N
SB4-915-M1925M8-XXXN	400	915	300~2500N
SB4-1115-M1925M8-XXXN	500	1115	300~2500N

Specification:

Rod Dia.: 14 mm

Tube Dia.: 28 mm

Rod Surface treatment : Nitrided Black

Tube Surface treatment : Black Coated

※ When you making enquiry ,please advise us the F1(Newton) force request.

Other size also available ,Please contact us for further information.

SUPERSEN-Gas Spring Free Series

Lifting, lowering, moving, adjusting

The gas spring can be designed with an approximately linear, progressive or degressive spring rate curve, to match the special request.

The characteristic curve of the spring describes the progression of the force of the gas spring over the stroke, from the extended to the compressed state and vice versa.

If the spring rate is flat and progresses in a practically linear manner, the force of the gas spring rises only slightly over the entire spring operation.

Spring rate: X=F2:F1

The force diagram on the left shows the line of the extension and compression force with a flat spring rate. The difference between the two lines is the result of the system friction produced during compression and extension.

The measuring points F1 and F4 are each located 5~10 mm before the fully extended and compressed stroke. The measurements were conducted at a temperature of 25℃±3℃.
