Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
| Model No. | Stroke (A) |
Extended Length (B) |
Force Range (N) |
Weight (g) | Remark |
| DD3-285-C920M8-XXXN | 100 | 285 | 100~850N | ||
| DD3-385-C920M8-XXXN | 150 | 385 | 100~850N | ||
| DD3-450-C920M8-XXXN | 180 | 450 | 100~850N | ||
| DD3-485-C920M8-XXXN | 200 | 485 | 100~850N | ||
| DD3-525-C920M8-XXXN | 220 | 525 | 100~850N | ||
| DD3-585-C920M8-XXXN | 250 | 585 | 100~850N | ||
| DD3-685-C920M8-XXXN | 300 | 685 | 100~850N | ||
| DD3-785-C920M8-XXXN | 350 | 785 | 100~850N | ||
| DD3-830-C920M8-XXXN | 370 | 830 | 100~850N | ||
| DD3-885-C920M8-XXXN | 400 | 885 | 100~850N |
Specification:
Rod Dia.: 10 mm
Tube Dia.: 22 mm
Rod Surface treatment : Nitrided Black
Tube Surface treatment : Black Coated
※ When you making enquiry ,please advise us the F1(Newton) force request.
Other size also available ,Please contact us for further information.
SUPERSEN-Dynamitic Gas Spring, OEM By STABILUS-SUPERSEN Fill & Assembly & QC IN TAIWAN.Gas Spring Quality approval by the word automotive industrial and others.
SUPERSEN-Gas Spring Dynamic damping Series

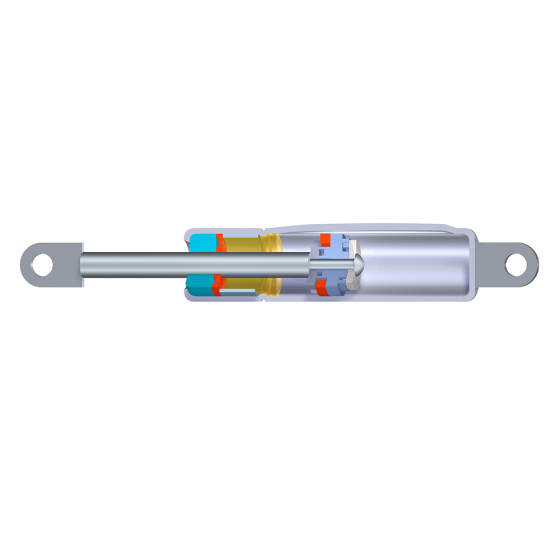

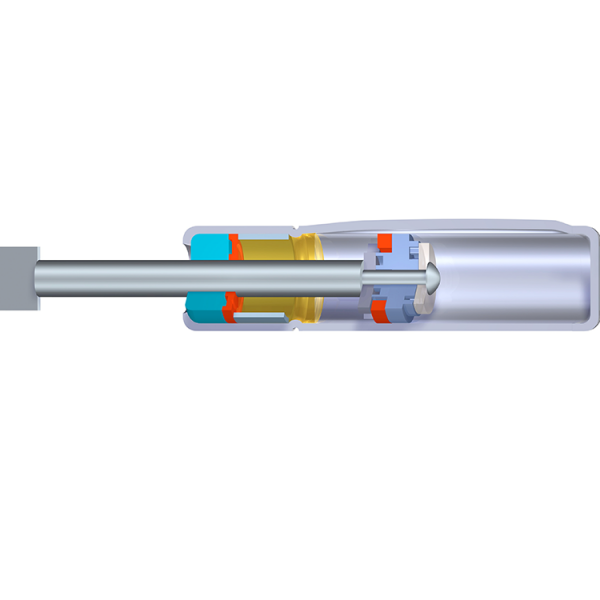

The LIFT-O-MAT DD with dynamic damping is a gas spring whose
damping properties and extension speed is controlled primarily through a longitudinal groove in the pressure cylinder.
By reducing or increasing the groove cross-section, the piston rodˊs speed can be varied over the entire stroke, allowing it to be customized to the application. The motion can be slowed down smoothly and continuously until it comes to a stop It allows implementing different compression and extension characteristics as well as a damped approach of intermediate positions.
The LIFT-O-MAT DD works regardless of its orientation while approaching any position smoothly, without stressing hinges and joints
Advantages:
Orientation-independent damping
Definable speed control
Great tunability of damping characteristics
