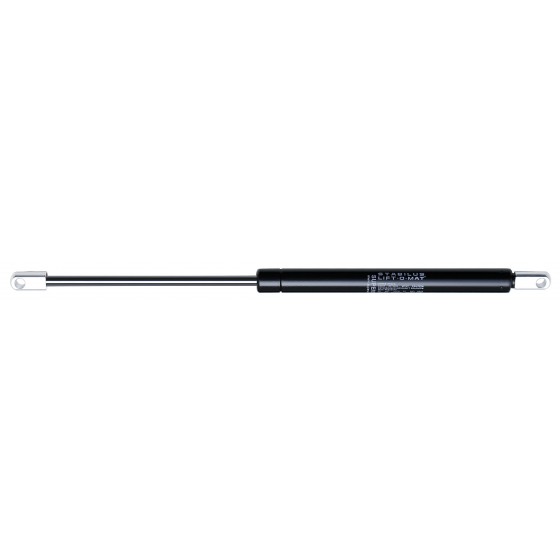

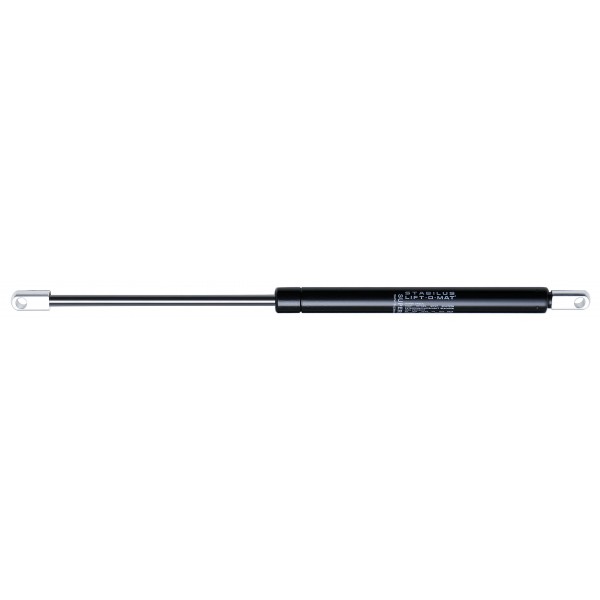

8mmx19mm (100N~600N) Enter Choose End Fitting

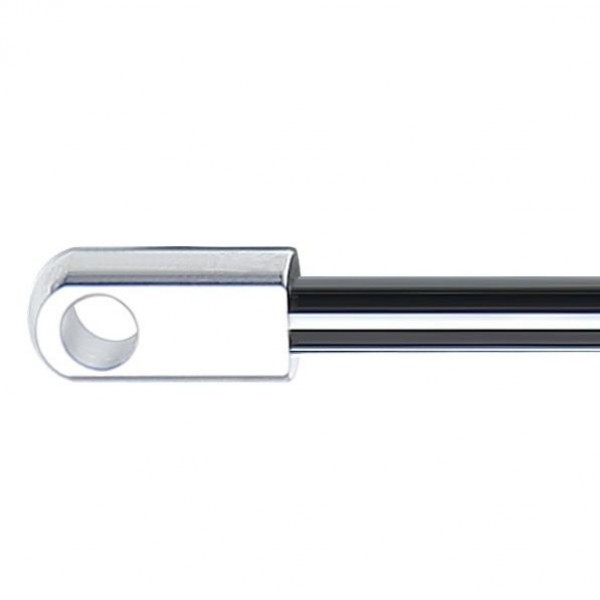

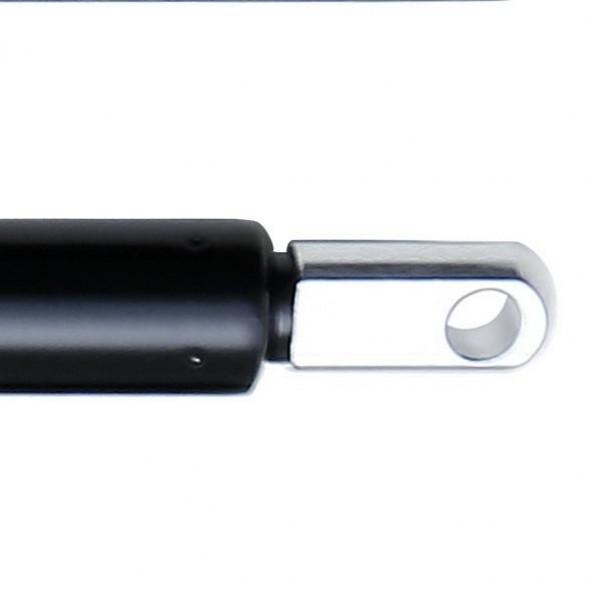

L4-0819 (Aluminum Eyelet / Hole 8mm)Select Spec.
Product details


Unit
:mm
9.8 Newton(N)=1 Kg=2.2 LBS

Model No. Stroke (A) Extended Length (B) Force Range (N) Weight (g)  Remark
DD2-285-L4-XXXN 100 285 100~600N
DD2-325-L4-XXXN 120 325 100~600N
DD2-365-L4-XXXN 140 365 100~600N
DD2-405-L4-XXXN 160 405 100~600N
DD2-445-L4-XXXN 180 445 100~600N
DD2-485-L4-XXXN 200 485 100~600N
DD2-525-L4XXXN 220 525 100~600N
DD2-585-L4-XXXN 250 585 100~600N





Specification:
Rod Dia.: 8 mm
Tube Dia.: 19 mm
Rod Surface treatment : Nitrided Black
Tube Surface treatment : Black Coated

 When you  making enquiry ,please advise us the  F1(Newton) force request.
    Other size also available ,Please contact us for further information.



SUPERSEN-Dynamitic Gas Spring, OEM By STABILUS-SUPERSEN Fill & Assembly & QC IN TAIWAN.Gas Spring Quality approval by the word automotive industrial and others.



SUPERSEN-Gas Spring Dynamic damping Series

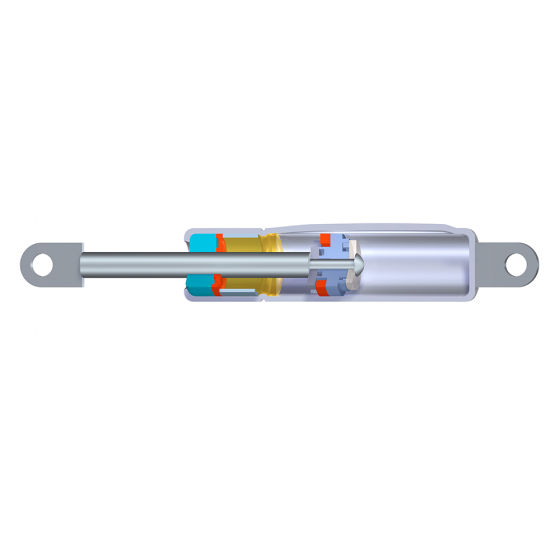

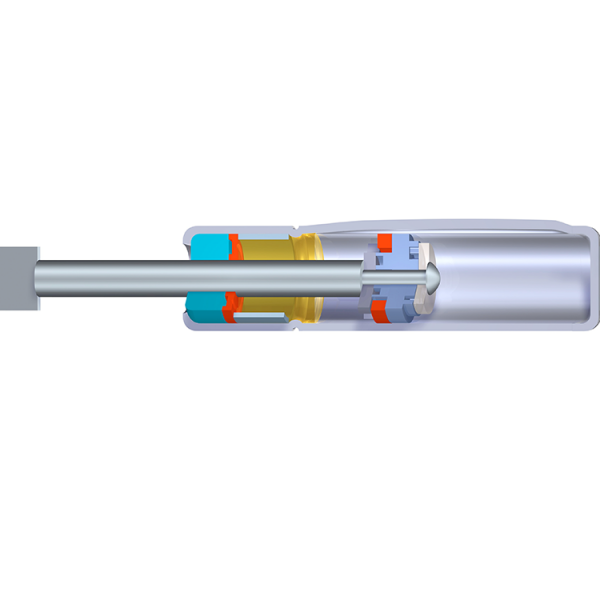

The LIFT-O-MAT DD with dynamic damping is a gas spring whose

damping properties and extension speed is controlled primarily through a longitudinal groove in the pressure cylinder.

By reducing or increasing the groove cross-section, the piston rodˊs speed can be varied over the entire stroke, allowing it to be customized to the application. The motion can be slowed down smoothly and continuously until it comes to a stop It allows implementing different compression and extension characteristics as well as a damped approach of intermediate positions.

The LIFT-O-MAT DD works regardless of its orientation while approaching any position smoothly, without stressing hinges and joints



Advantages:

Orientation-independent damping

Definable speed control

Great tunability of damping characteristics
