Free Type-LOM-PTL Enter Choose End Fitting

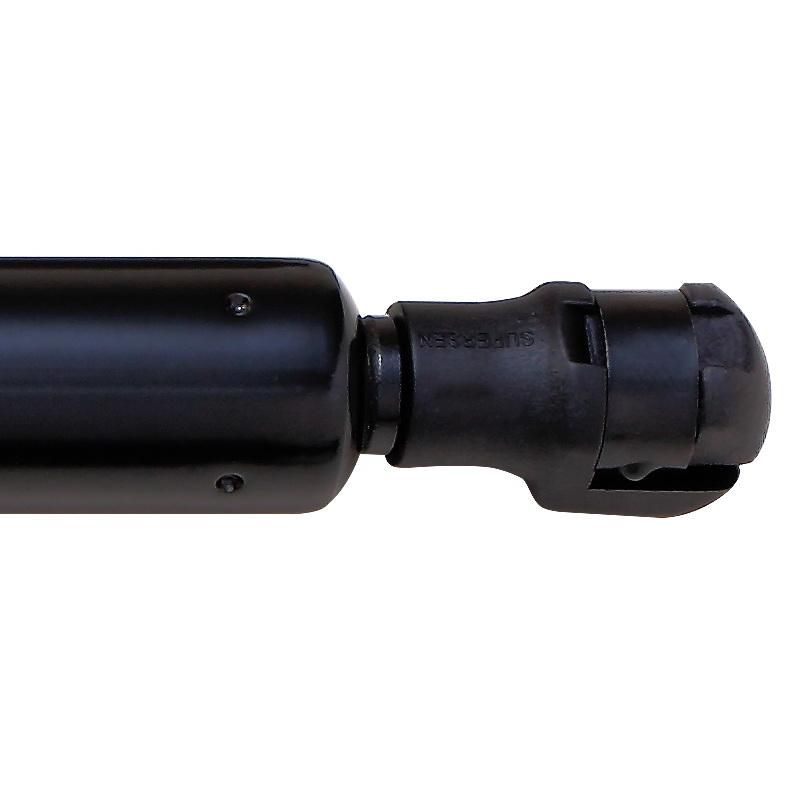

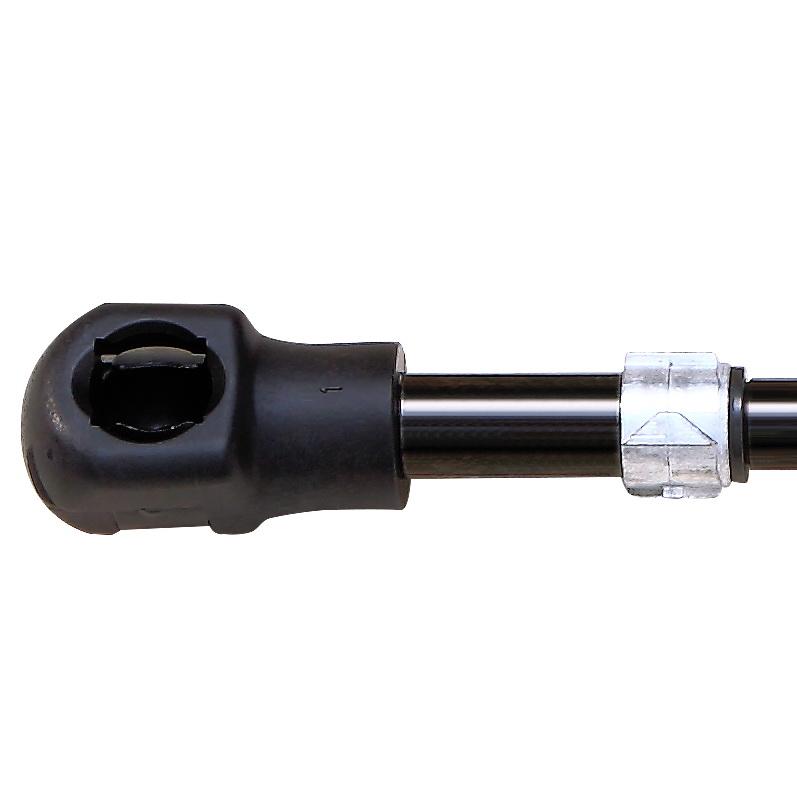

PTL-B10 Socket (Plastic)(Hole 10mm)Select Spec.
Product details

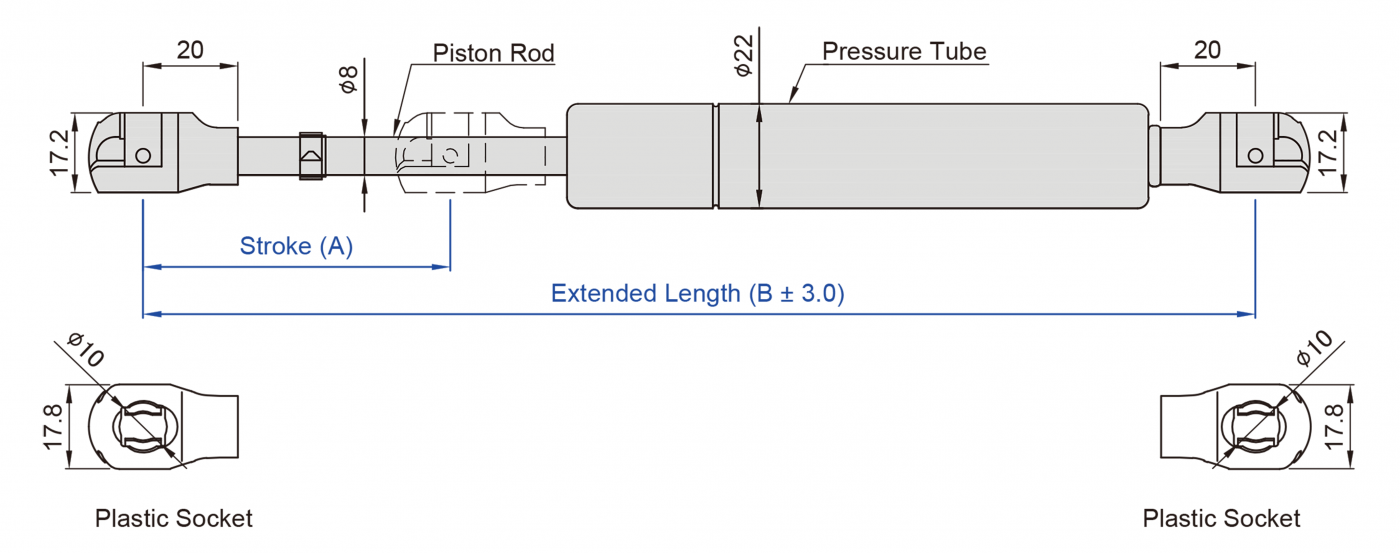

Unit: mm
 9.8 Newton(N)=1 Kg=2.2 LBS

Model
No.
Stroke
(A)
Extended
Length (B)
Force
Range (N)
Weight (g) Remark
PTL-100-B10-XXXN 100 335 100~400N
PTL-150-B10-XXXN 150 435 100~400N
PTL-200-B10-XXXN 200 535 100~400N
PTL-250-B10-XXXN 250 635 100~400N
PTL-300-B10-XXXN 300 735 100~400N
PTL-350-B10-XXXN 350 835 100~400N
PTL-400-B10-XXXN 400 935 100~400N

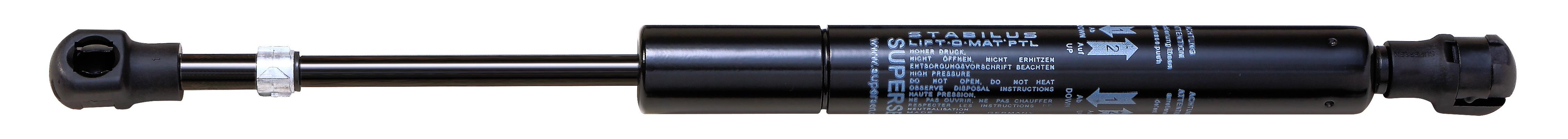

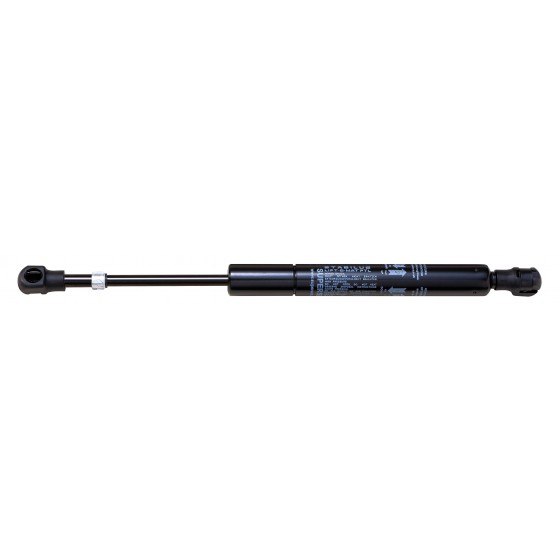

Supersen Gas Spring-PTL (Push To Lift) series was OEM produced by Stabilus Germany,Fill and Assemble and QC By Supersen.
PTL are firstly imported and applied to Taiwanese high class industries and furniture. They own high Germany quality but offer reasonable price. Inquiries are welcome.



Advantages:

1. Locking in compressed position

2. End position lock without additional locking elements

3. Simple release of lock using the ballpoint pen principle

4. User-friendly, convenient operation

5. Maintenance-free



Supersen PTL series can Lifting, lowering, moving and adjusting. Fully compress then locked. The function of PTL is similar to automatic pencil.



Specification:

Rod Dia.: 08 mm

Tube Dia.: 22  mm

Rod Surface treatment : Nitrided Black

Tube Surface treatment : Black Coated



※ When you making enquiry, please advise us the F1(Newton) force request.
