10mmx22mm (100N~1000N) Enter Choose End Fitting

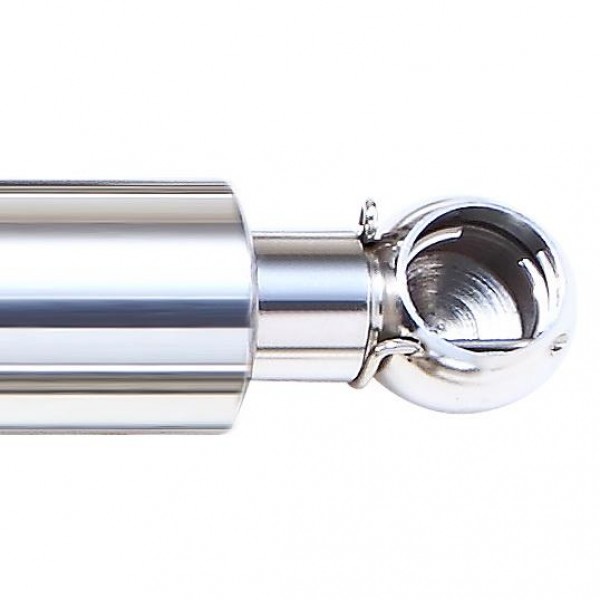

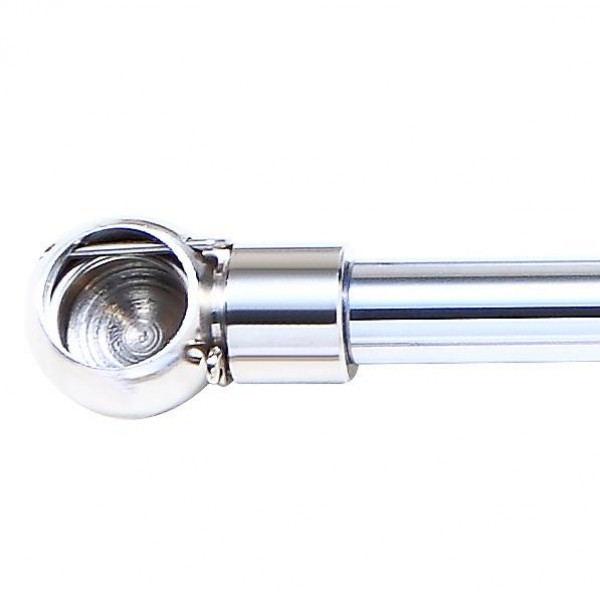

C19S20M8-1022 Socket ( Hole 13mm)Select Spec.
Product details


Unit:mm
9.8 Newton(N)=1 Kg=2.2 LBS

Model No. Stroke
(A)
Extended
Length (B)
Force
Range (N)
Weight (g)  Remark
CS100285-C19S20-XXXN 100 285 100~1000N
CS150385-C19S20-XXXN 150 385 100~1000N
CS200485-C19S20-XXXN 200 485 100~1000N
CS250585-C19S20-XXXN 250 585 100~1000N
CS300685-C19S20-XXXN 300 685 100~1000N
CS350785-C19S20-XXXN 350 785 100~1000N
CS400885-C19S20-XXXN 400 885 100~1000N

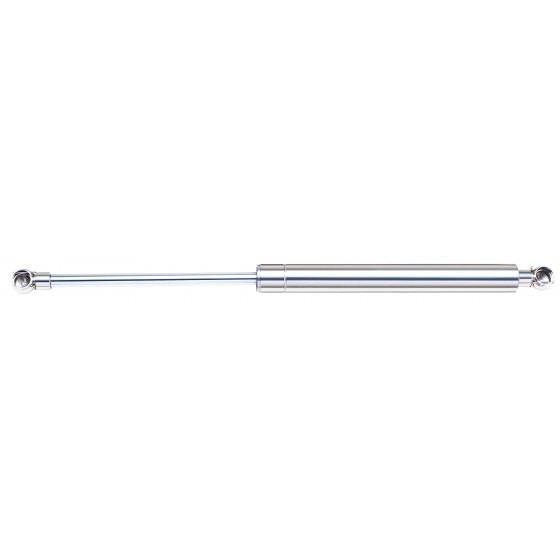

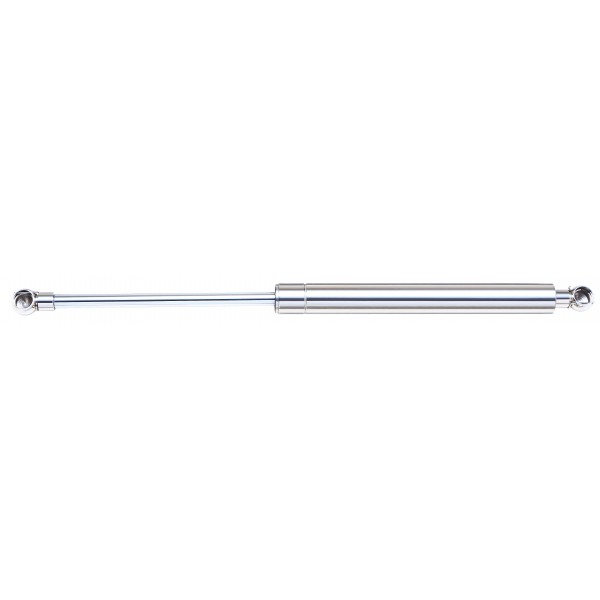

SUPERSEN-Stainless Steel Gas Spring


SUPERSEN stainless steel gas spring is particularly corrosion resistant due to the use of AISI 316L steel.



It is used in special environments, such as sea water, sea air or area covered with exhaust of industry.



SUPERSEN stainless steel gas spring’s efficiency of corrosion will ensure a high level of protection including the acid or alkaline environment.



Chosen materials carefully for gas spring components yield a virtually iron-free, non-magnetic product.



SUPERSEN stainless steel gas springs are especially used in medical and military machines as barely interfere with magnetic environment.



The oil used in the SUPERSEN gas springs are eco-friendly and classified as no hazard.

Features And Advantages:

a. High corrosion protection

b. Compact design

c. Non-magnetic

d. Environmentally friendly

e. Maintenance-free



※WHEN YOU MAKING ENQUIRY, PLEASE ADVISE US THE F1(NEWTON) FORCE REQUEST.

Other size also available, Please contact us for further information.
