6mmx15mm (50N~300N) Enter Choose End Fitting

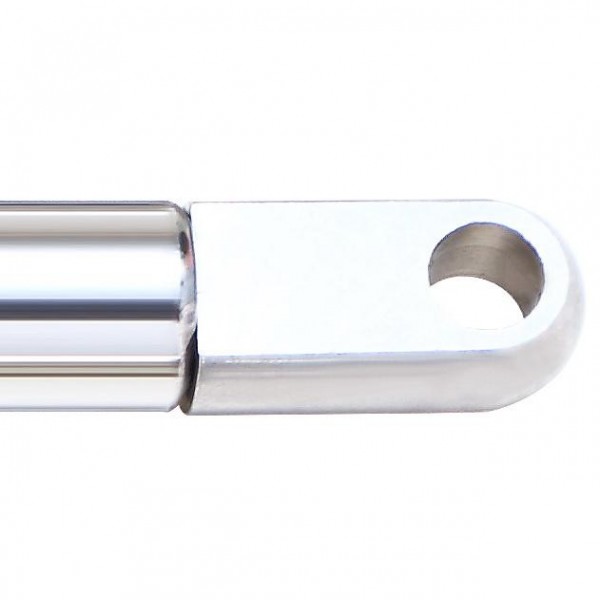

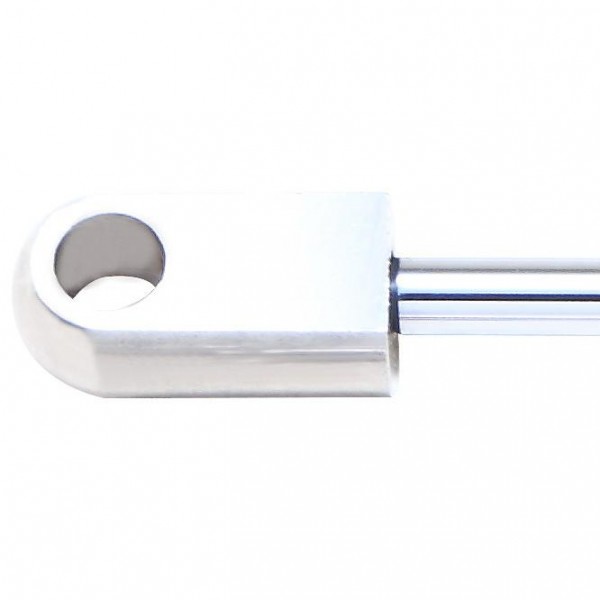

L5SM608-0615 Eyelet( Hole 8mm)Select Spec.
Product details


Unit:mm
9.8 Newton(N)=1 Kg=2.2 LBS

Model No. Stroke
(A)
Extended
Length (B)
Force
Range (N)
Weight (g) Remark
AS040155-L5S08-XXXN   40 155 50~300N
AS060195-L5S08-XXXN   60 195 50~300N
AS080240-L5S08-XXXN   80 240 50~300N
AS090255-L5S08-XXXN   90 255 50~300N
AS100280-L5S08-XXXN 100 280 50~300N
AS120315-L5S08-XXXN 120 315 50~300N
AS150375-L5S08-XXXN 150 375 50~300N

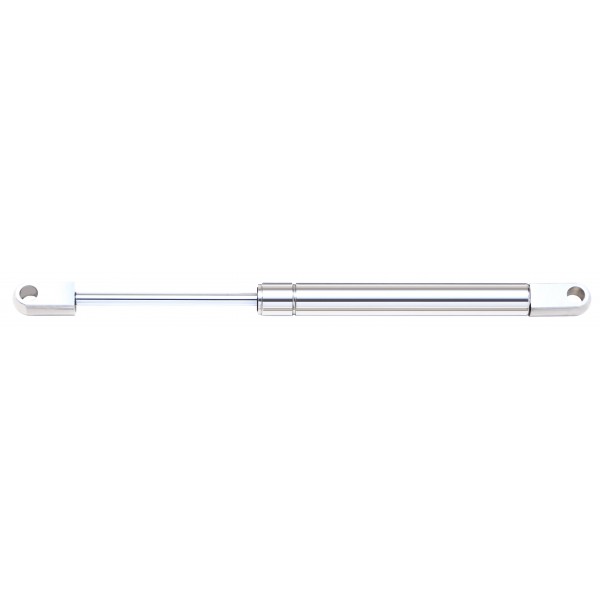

SUPERSEN-Stainless Steel Gas Spring


SUPERSEN stainless steel gas spring is particularly corrosion resistant due to the use of AISI 316L steel.



It is used in special environments, such as sea water, sea air or area covered with exhaust of industry.



SUPERSEN stainless steel gas spring’s efficiency of corrosion will ensure a high level of protection including the acid or alkaline environment.



Chosen materials carefully for gas spring components yield a virtually iron-free, non-magnetic product.



SUPERSEN stainless steel gas springs are especially used in medical and military machines as barely interfere with magnetic environment.



The oil used in the SUPERSEN gas springs are eco-friendly and classified as no hazard.

Features And Advantages:

a. High corrosion protection

b. Compact design

c. Non-magnetic

d. Environmentally friendly

e. Maintenance-free



※WHEN YOU MAKING ENQUIRY, PLEASE ADVISE US THE F1(NEWTON) FORCE REQUEST.

Other size also available, Please contact us for further information.
