Unit： mm
9.8 Newton(N)=1Kg=2.2LBS

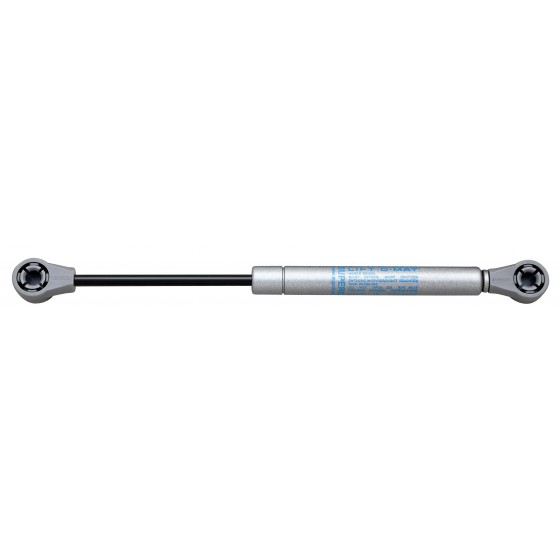

| Model No. | Stroke (A) | Extended Length (B) | Force F1(N) |
| SBF1-251-SS2-050N | 88 | 251 | 50N |
| SBF1-251-SS2-080N | 88 | 251 | 80N |
| SBF1-251-SS2-100N | 88 | 251 | 100N |
| SBF1-251-SS2-120N | 88 | 251 | 120N |
| SBF1-251-SS2-150N | 88 | 251 | 150N |
.jpg)
Installation Applications:
Among the most frequent installation situations for furniture gas spring are flaptype cabinet doors that open upward. For this case, we have defined the best mounting orientation on the following pages.
.jpg)
Gss Spring Selection Guide:
.jpg)
