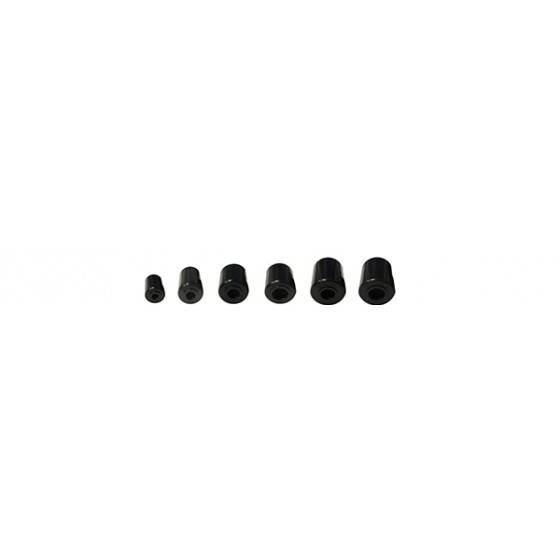

Supersen develop 8 Type gas spring rubber Anti-dust cover suit for gas spring 0412,0615,0818,1022,1222,1227,1228,1428. Series.
This new gas spring rubber anti-dust cover features on the first single trench but double-contact surfaces design.
It has significant anti-dust and oil removal effect.
It's widely applied to the electronic equipment and the dirty working environment.
Namely the new gas spring rubber anti-dust cover can magically avoid the dust during the gas spring operation and extend the gas spring lifetime.
Inquiry are welcome.

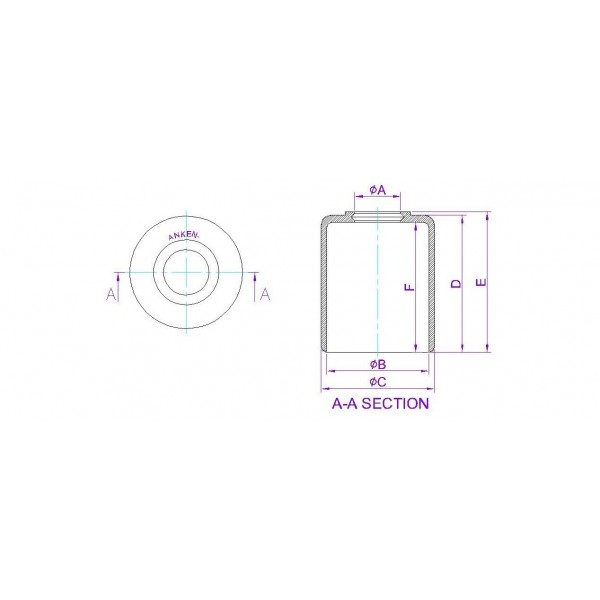

Unit:mm
| Model No. | ØA | ØB | ØC | D | E | F | Piston Rod Dia. | Tube Dia. | Material |
| RB-0412-15 | 3.8 | 11.8 | 14.2 | 14.3 | 15 | 12.8 | 4 mm | 12 mm | Rubber |
| RB-0615-23 | 5.8 | 14.8 | 17.2 | 22.3 | 23 | 20.8 | 6 mm | 15 mm | Rubber |
| RB-0818-30 | 7.8 | 17.8 | 20.2 | 29.3 | 30 | 27.8 | 8 mm | 18 mm | Rubber |
| RB-1022-30 | 9.8 | 21.8 | 24.2 | 29.3 | 30 | 27.8 | 10 mm | 22 mm | Rubber |
| RB-1222-30 | 12.3 | 21.8 | 24.2 | 29.3 | 30 | 27.8 | 12.5 mm | 22 mm | Rubber |
| RB-1227-35 | 12.3 | 27.2 | 30.2 | 34.3 | 35 | 32.8 | 12.5 mm | 27.4 mm | Rubber |
| RB-1228-35 | 12.3 | 27.8 | 30.2 | 34.3 | 35 | 32.8 | 12.5 mm | 28 mm | Rubber |
| RB-1428-35 | 13.8 | 27.8 | 30.2 | 34.3 | 35 | 32.8 | 14 mm | 28 mm | Rubber |
