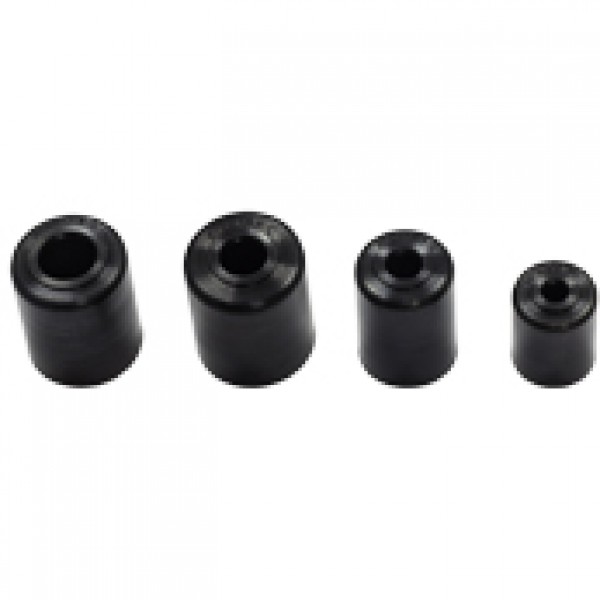

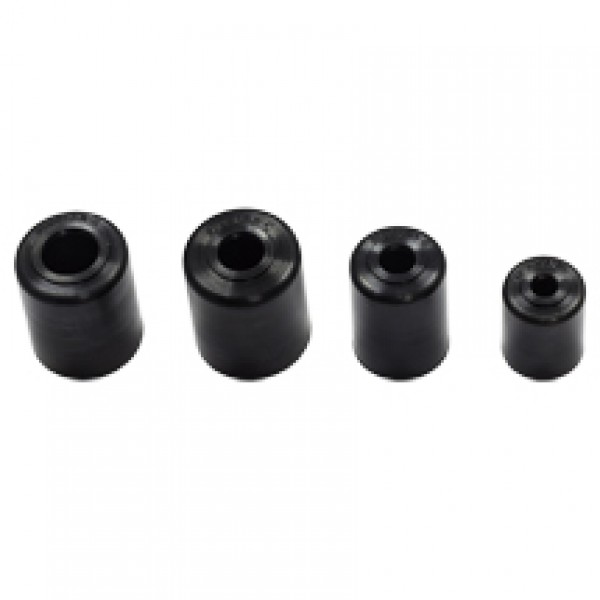

Supersen related corporation - Taiwan Anken Corporation has developed the 7 series (0615,0818,1022,1222,1227,1228,1428) gas spring rubber anti-dust cover model on Jan.,25,2013.

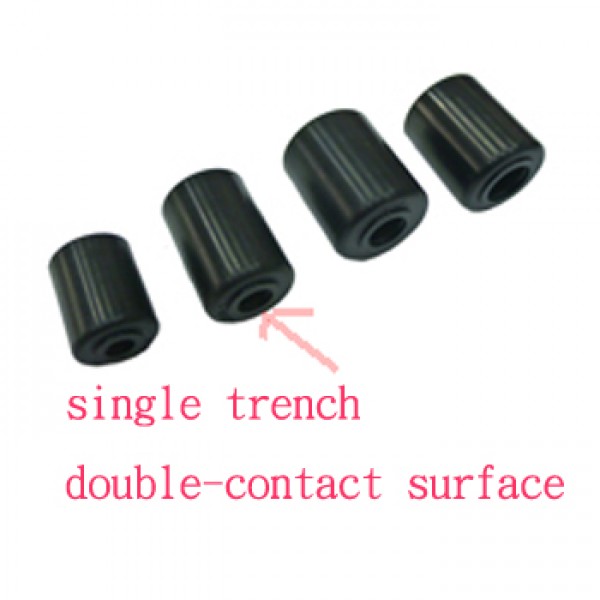

This new gas spring rubber anti-dust cover features on the first single trench but double-contact surfaces design.It has significant anti-dust and oil removal effect.
It's widely applied to the electronic equipment and the dirty working environment.
Namely the new gas spring rubber anti-dust cover can magically avoid the dust during the gas spring operation and extend the gas spring lifetime.
Inquiry are welcome.
Model No.
φA
φB
φC
D
E
F
Piston Rod Dia.
Tube Dia.
RB-0615-23
5.8
14.8
17.2
22.3
23
20.8
6 mm
15 mm
RB-0818-30
7.8
17.8
20.2
29.3
30
27.8
8 mm
18 mm
RB-1022-30
9.8
21.8
24.2
29.3
30
27.8
10 mm
22 mm
RB-1222-30
12.3
21.8
24.2
29.3
30
27.8
12.5 mm
22 mm
RB-1227-35
12.3
27.2
30.2
34.3
35
32.8
12.5 mm
27.4 mm
RB-1228-35
12.3
27.8
30.2
34.3
35
32.8
12.5 mm
28 mm
RB-1428-35
13.8
27.8
30.2
34.3
35
32.8
14 mm
28 mm
